24Kg Light Steel Rail

FOB Reference Price / Min.Order Quantity

USD 0.00-0.00 / Ton/Tons | 0.00 Ton/Tons (Min. Order)

Processing Time:7-10 days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Tianjin,Shanghai,Qingdao

Payment Terms: , ,

Product Details Company Profile

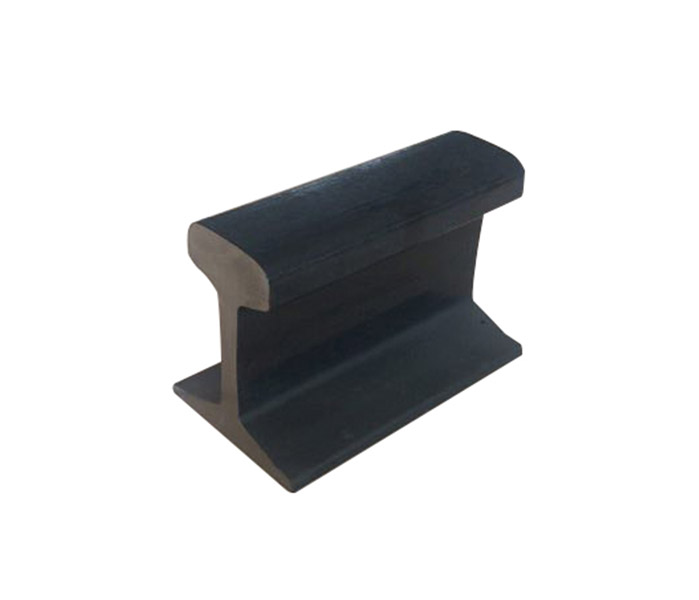

24Kg Light Steel Rail

10m Length Light Steel Rail,High Quality Steel Rail

Material： Q235/55Q

Weight：24.46Kg/M

Length：6-10m

Standard：GB11264-2012

PRODUCT PARAMETERS

Parameters
type	weight (kg/m)	material	length (m)
24kg	24.46	Q235/55Q	6-10m
rail height (mm)	bottom width (mm)	head width (mm)	web thinkness (mm)
107	92	51	10.90

Light Steel Rail	size	Rail Height	Bottom Width	Head Width	Web Thickness	Weightkg/m
	8kg	65	54	25	7	8.42
	12kg	69.85	69.85	38.1	7.54	12.2
	15kg	79.37	79.37	42.86	8.33	15.2
	18kg	90	80	40	10	18.06
	22kg	93.66	93.66	50.8	10.72	22.3
	24kg	107	92	51	10.9	24.46
	30kg	107.95	107.95	60.33	12.3	30.1

Introduction and application

Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.

The steel rail in china are divided into Crane rail, Heavy rail and light rail.

Light rail is divided into GB and the ministry standard (YB metallurgical standard). There are 8kg, 12kg, 15kg, 18kg, 22kg, 24kg, 30kg.

The light rail is mainly used for the laying of temporary transportation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.
