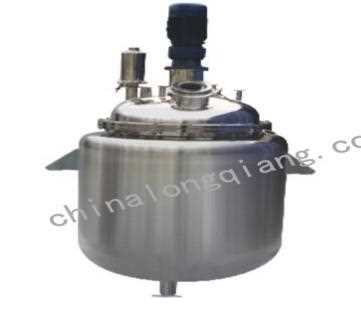

Crystallizing tank(Fermentation tank) Hit count 1344

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Fermentation Tank(seed tank, crystalizing tank)is wideky applied in pharmacy,fine chemical engineering and biological engineering in dustries.The tank body has inerlayer and heat-insulating layer(for heating, cooling of heat insulating).The tank body, upper and lower closure heads(or tape)all adopt spinning R-angle processing.The internal wall of the tank ha got mirror polishing with finish Ra≤0.4цm.It has no sanitary dead corner and its wholly-enclosed design ensures that material are always.

It is equipped with devices including air respirator,cleaning ball,sanitation inlet, viewing mirrir,and viewing lamp.The fermentation process of Pharmacy, fine chemical engineering and biological products are aseptic and untainted, Fermentation tank adopts aseptic system which helps aviod microorganism pollution in the air and greatly extends qulity warranty period and purity of the products. We specially designed and installed aseptic resoiratry air hole or aseptic normal-pressure fermentation system,which can finish circulating heat-up and cooling through medium heat-up and cooling, The parts that contact materials are all made of stainless steel SUS304 or SUS316L . Heat preservation adopts polyurethane blister or pearl cotton. External surface adopts sand grinding surface polishing treatment.All is in accordance with GMP standard.

Volume has different specifications ranging from 100-20000L.

Parameters:

Type specifications	100L	200L	500L	1000L	2000L	5000L	10000L	20000L
Diameter(mm)	400	500	700	900	1200	1500	1800	2300
Height(mm)	2000	2300	2650	2900	3800	4480	5250	6550
Pressure in the tank(Mpa)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Jacket pressure(Mpa)	0.3	0.3	0.3	0.3	0.3	0.3	Pipe0.3	Pipe0.3
Quantity of mixer blade	2	2	2	2	2	3	3	4
Rotate speed(r/m)	80
Motor power(kw)	0.55	0.75	1.1	1.5	3	5.5	7.5	7.5
Cooling modes	jacket					Tube
