Crystallization tank Hit count 3275

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Description:

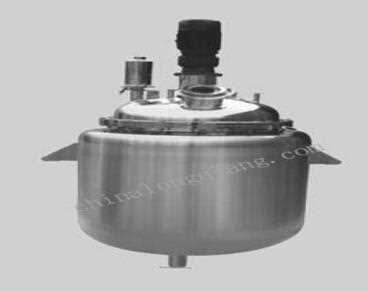

This equipment is suitable for the pharmacy, chemical and biology areas. It can be processed in non-polluted state. It is equipped with air respirator, cleaning ball, sanitary inlet viewing mirror and viewing lamp. Heat preservation is polyurethane blister or pearl cotton. External layer adopts sand-grinding polishing treatment.

Preformance:

Material SUS316L or  SUS304
Volume 100---20000L
Mirror polishing rate ≤0.4μm
Standard GMP

Technical Parameters:

Type specifications	100L	200L	500L	1000L	2000L	5000L	10000L	20000L
Diameter(mm)	400	500	700	900	1200	1500	1800	2300
Height(mm)	2000	2300	2650	2900	3800	4480	5250	6550
Pressure in the tank(Mpa)	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2
Jacket pressure (Mpa)	0.3	03	0.3	0.3	0.3	0.3	pipe 0.3	pipe 0.3
Quantity of mixer blade	2	2	2	2	2	3	3	4
Rotate speed(r/m)	80
Motor power(kw)	0.55	0.75	1.1	1.5	3	5.5	7.5	7.5
Cooling modes	jacket					Tube
