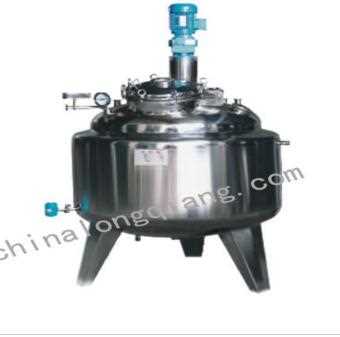

Concentrated-collocation tank Hit count 1352

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

1.The equipment has many functions,such as heating,cooling,heat presevation and mixing preparation.The container is designed and processed according toTechnical conditions of the steel-made pressure container.

2.The are different specifications for selection, ranging from 0.05m³-5.0m³, up tp the customers’ request.

3.With interplayer, wide heating area and small welding area.

4.The mode of the jacket consist of standard jacket,external coil and dimple jacket.

5.The inetrface adopts internationally general-use standard ISO standard rapid, installation chuck type ,and the material is imported 316L or 304, The mirror polishing intemal surface Ra≤0.28цm, and the extamal surface is mirror finsh or matt finsh.

6.The level meters for selection are glass tube level meter, static pressure sensor type level meter and supersonic wave level meter.

7.The structure form are divided into upward and low- downward round sealing heat or downward reverse convex bottom upward round sealing head structure, which can guarantee no residual of liquid medicine.

8.The heat preservation material is polyurethane or pearl wool.

9.The equipment is equipped with respirator,CIP nozzle,viewing mirror,flanged quick-installed manhole.

Parameters:

Type	Specifications(L)	Dimensions(mm)
Type	Specifications(L)	D	D1	H	H1	H2	H3	DN	power
PG03-100	100	500	700	1700	850	450	235	32	0.37KW
PG03-150	150	600	800	1750	900	450	235	32	0.37KW
PG03-250	250	800	1000	1800	960	450	235	32	0.55KW/0.75KW
PG03-300	300	800	1000	2000	1010	460	235	32	0.55KW/0.75KW
PG03-500	500	900	1100	2050	1240	640	270	40	0.55KW/0.75KW
PG03-600	600	900	1100	2315	1430	830	270	40	0.55KW/0.75KW
PG03-1000	1000	1100	1300	2505	1580	880	270	40	0.75KW/1.1KW
PG03-1200	1200	1100	1300	2655	1800	1100	270	40	0.75KW/1.1KW
PG03-1500	1500	1200	1400	3275	1900	1150	270	40	0.75KW/1.1KW
PG03-2000	2000	1400	1600	3275	2050	1220	280	40	1.5KW/2.2 KW
PG03-2500	2500	1500	1700	3135	2050	1150	280	40	1.5KW/2.2
PG03-3000	3000	1600	1800	3255	2170	1220	280	40	1.5KW/2.2
PG03-4000	4000	1800	2000	3385	2300	1250	280	40	1.5KW/2.2
PG03-5000	5000	1900	2100	3675	2550	1450	320	50	2.2KW
PG03-6000	6000	2100	2300	3725	2600	1400	320	50	3KW
PG03-7000	7000	2200	2400	3815	2690	1450	320	50	3KW
