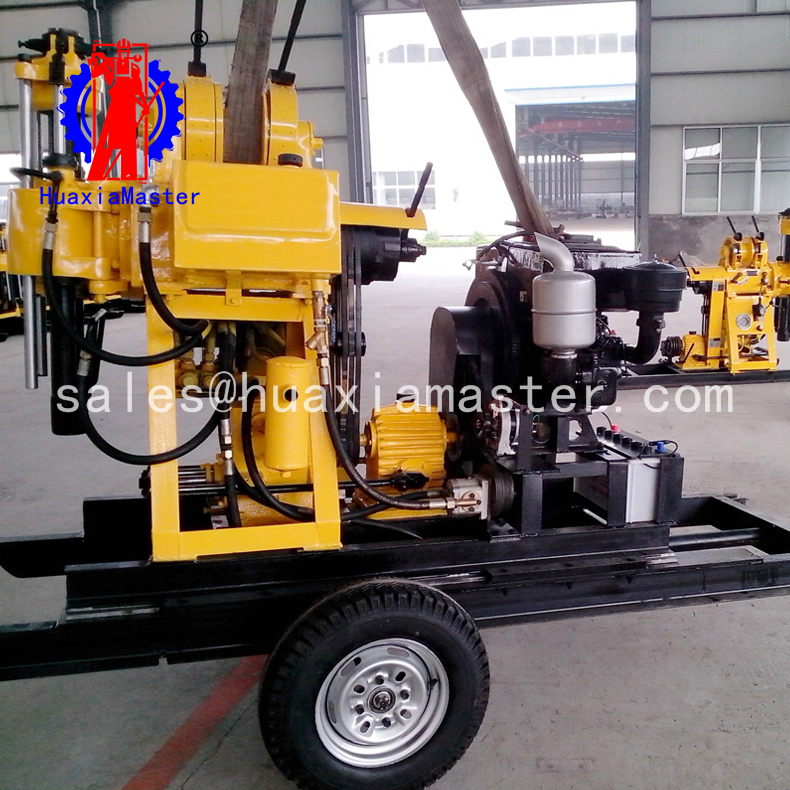

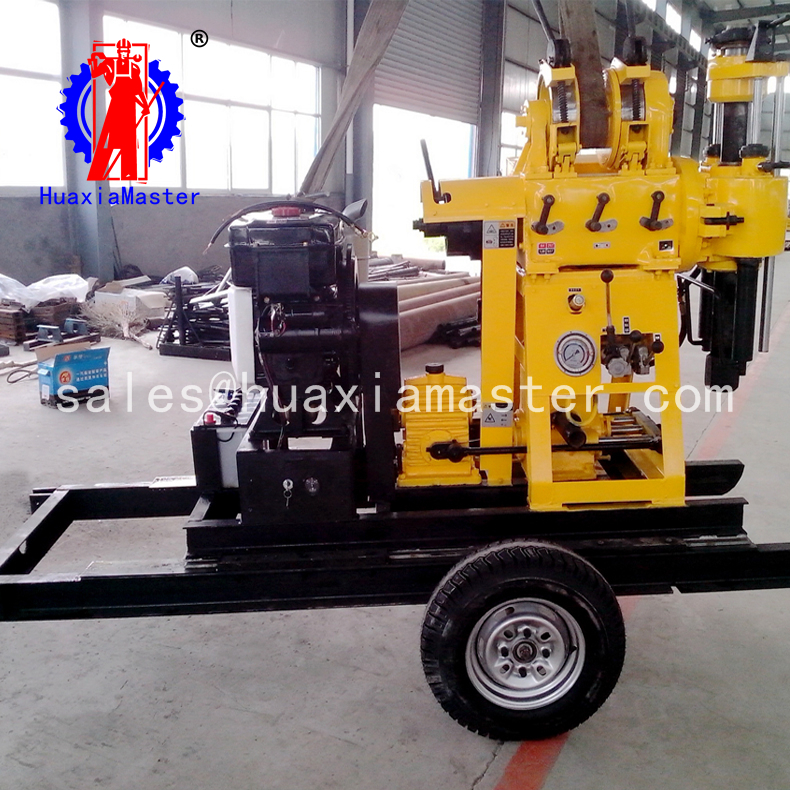

Cheap Price-Drill 200m Deep Mobile Small Hydraulic Water Well Drilling Rig For Sales

FOB Reference Price / Min.Order Quantity

USD 4500.00-4600.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:within three days

Packaging Details: wooden packaging

Port: Qingdao

Payment Terms: , , , ,

1. Characteristics of XYX-200 wheeled hydraulic core drilling rig

hydraulic cylinder, high efficiency
wheeled walking mechanism, very convenient for transport and adjusting the drilling rig level.
pressure gauge display the condition of the bottom of the drill hole.
the machine is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod.
the working efficiency is high and the operation is convenient, safe and reliable.

2. Parameters of XYX-200 wheeled hydraulic core drilling rig

XYX-200 wheeled hydraulic core drilling rig
Drill hole depth	200m
Maximum opening diameter	300mm
Final hole diameter	75mm
Drill pipe diameter	60mm
Borehole inclination	90°-75°
Rig weight (without power)	1300kg
Trigonometric belt	B9504 B17003
Active moving distance	300mm
Power	Diesel engine/motor 22hp/16.2kw
A vertical scroll of painting
Shaft rotation speed	64/128/ 287/ 557 r/min
Vertical axis stroke	450mm
Windlass
Maximum lifting weight of single rope	2400kg
Single rope lifting speed	0.41/ 0.82/1.64m/s
Wire rope diameter	13mm
Wire rope capacity	35m
Hug floodgate caliber	260mm
Hug floodgate belt width	70mm
Mud pump
Type	Horizontal single cylinder double action
Maximum displacement	Diesel engine 170L/min Matching motor 150L/min
Maximum pressure	3Mpa
Work pressure	1.5Mpa
Inlet pipe caliber	40mm
Outlet pipe caliber	30mm
Triangle conveyer belt	B1728mm
Type	CBT—F—314
Triangle conveyer belt	B1100*1
