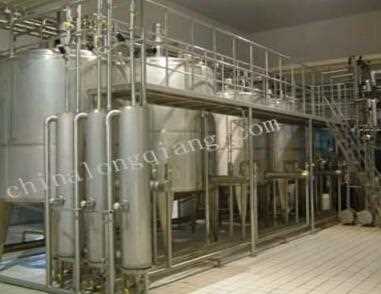

CIP system Hit count 3265

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Description:

The operating principle of the full auto CIP cleaning system means that the tank body,pipelines,pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments,all cleaning are done at the closed circuit.

Technicals:

This system adopt the PLC program to control,with the colored touch--screen to operate and display the whole process flow and also the each controlling parameter.The temperature of the cleaning liquid can be installed.It can set the PH valve,the cleaning time,cleaning sequence,and also the refluence PH valve.With the system malfunction alarm device.

The operating principle of the system:

1.Auto-flow control for the cleaning solution

2.Automatically reulate the temperature of the cleaning liquid

3.Auto-compensate for the inside tank liquid level

4.Automatically-comprensation for the acid and alkali concentration.

5.Auto transfer from on cleaning liquid to another.

6.System auto alarm-device.

Main structure:

CIP cleaning liquid storage tanks(inculde acid tank,alkali tank,hot water tank,clear water tank);

Two not big storage single layer tanks for concentrated acid and alkali;

CIP forward and return pumps;

Two diaphragm pumps for acid/alkali concentrate;

Heat exchanger(Plate or Tubular type);

One electrical appliance box;

One set of controlling pipe and valve component;

One set of auto-performance components and parts and the electrical appliance material;

According to the customer's requirements,we can make the double circuit,three circuit,four circuit and so on,meanwhile,we can make multi circuit operating at the same time.

The heating way:Plate type,coil tube type,Tubular
