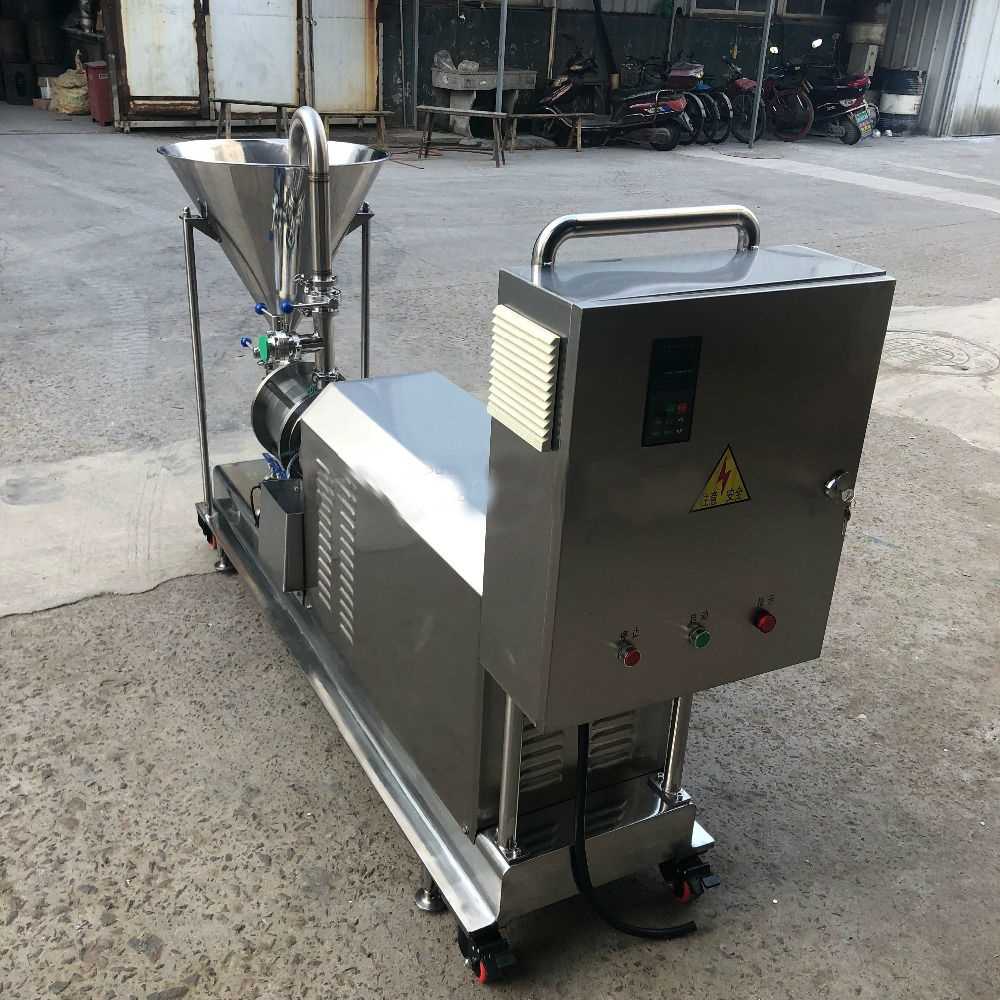

A fine high shear homogenizer machine doesn't simply mix. It emulsifies, homogenises, suspends, disperses and disintegrates solids. Each mixer, with its precision-engineered  rotor/stator workhead, far outperforms conventional mixers, cutting processing times by up to 80%, improving quality, product consistency and process efficiency.



Features

- Suitable for industrial online continuous production

- Wide viscosity range than in batch high shear mixer

- No batch difference

- High efficiency, low noise

- Special designed three stages rotor/stator for greater shear.

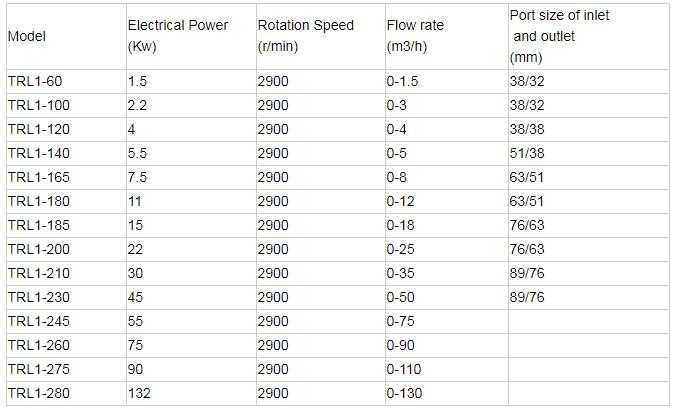

Main technical data:

Capacity
Self-pumping throughputs of up to 130T/H.

No Bypassing
Product cannot bypass the precision rotor/stator workhead.

Interchangeable Workheads
Single stage rotor/stator configurations workheads as standard. For those applications that require greater shear, interchangeable multistage configurations workheard can be used. there are three stages rotor/stators available.

Materials of Construction
It can be SS304, SS316 and SS316L.

Motor Specification
Standard and explosion proof motors (Siemens, ABB etc) are available as standard.

Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).

Sealing
Single mechanical shaft seals available as standard.

Cleaning
All In-Line mixers are designed for cleaning in place (CIP and SIP).

Cooling

Cooling jacket structure as standard
