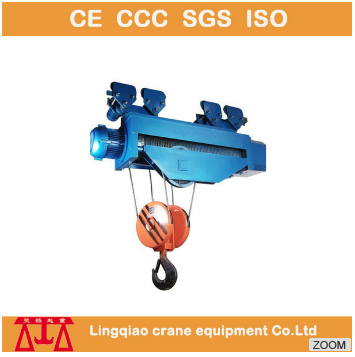

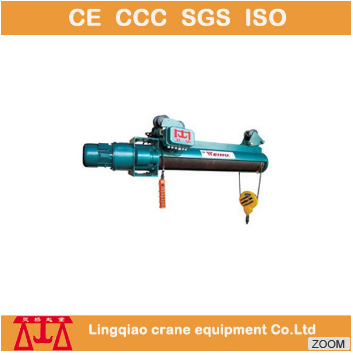

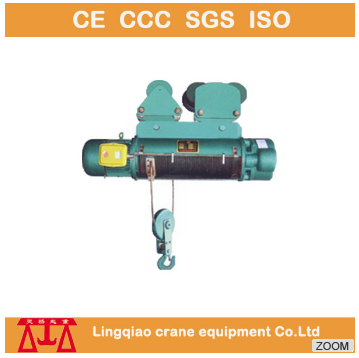

CD/MD Type Electric Hoist with High Quality

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Main Features

Products Features:
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint

Safety Features:
1)Overloading protection
2)Top quality long time bearing polyurethane materials buffer
3)Voltage lower protection function, reduce energy consumption
4)Emergency stop system, current over-load protection system, excellent exchangeability for parts and components

Model	MD1 0.5T	MD1 1T	MD1 2T	MD1 3T	MD1 5T	MD1 10T	MD1 16T	MD1 20T
Capacity T	0.5	1	2	3	5	10	16	20
Standard lifting height m	6-12	6-30	6-30	6-30	6-30	9-30	9-18	9-18
Lifting speed m/min	8(0.8)	8(0.8)	8(0.8)	8(0.8)	8(0.8)	7(0.7)	3.5(0.35)	3.5(0.35)
Running speed m/min	20	20	20	20	20	20	20	20
Wire rope type	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1	D-6X37+1
I-beam track type	16-28b	16-28b	20a-32c	20a-32c	25a-63c	25a-63c	46a-63c	50a-63c
Loop track minium radius m	1.5	1.5-4	2-4	2-4	2.5-5	2.5-9	3-4.6	3-4.6
Power supply	220V-440V,3phase.50/60HZ
Working duty	Mid M3	Mid M3	Mid M3	Mid M3	Mid M3	Mid M3	Mid M2	Mid M2
