Introduction of ball grinding mill

Capacity: 20-200t/h

Max feeding size: 25mm

Shipping ports: Shanghai, China

Delivery: 15 days after received the deposit

Raw materials: quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.

Application of ball grinding mill

is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc

Working principle of ball grinding mill

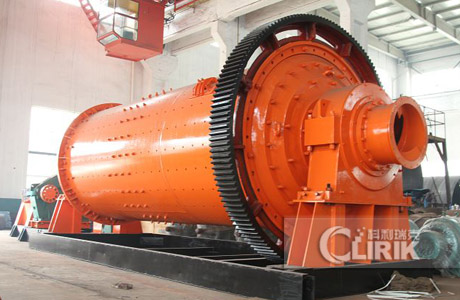

Ball Grinding Mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Features of Ball Grinding Mill

1. Suitable for grinding material with high hardness

2. The shape of the final products is circular

3. No pollution for the powder with ceramic ball

4. Stable performance

5. Easy installation

6. The capacity and fineness can be adjusted by adjusting the diameter of the ball

Specifications of Ball Grinding Mill

Model	Rotary speed(r/min)	weight(t)	Input size(mm)	Discharge size(mm)	Capacity(t/h)	Motor power (kw)	Weight (t)
Ф900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
Ф900×3000	39	2.7	≤20	0.075-0.89	1-4	22	5.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
Ф1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
Ф1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
Ф2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ф2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
Ф2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ф2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ф2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
Ф2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ф2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
Ф2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ф3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ф3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ф3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ф3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
Ф3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260

Q&A

1. What advantages does your micro powder machine, stone mill, powder grinding mill have?

—The main advantage of our micro powder machine, stone mill, powder grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.

2. Can you guarantee the quality of your micro powder machine, stone mill, powder grinding mill?

---We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.

3.How many years have you been manufacturing the machine?

---8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality
