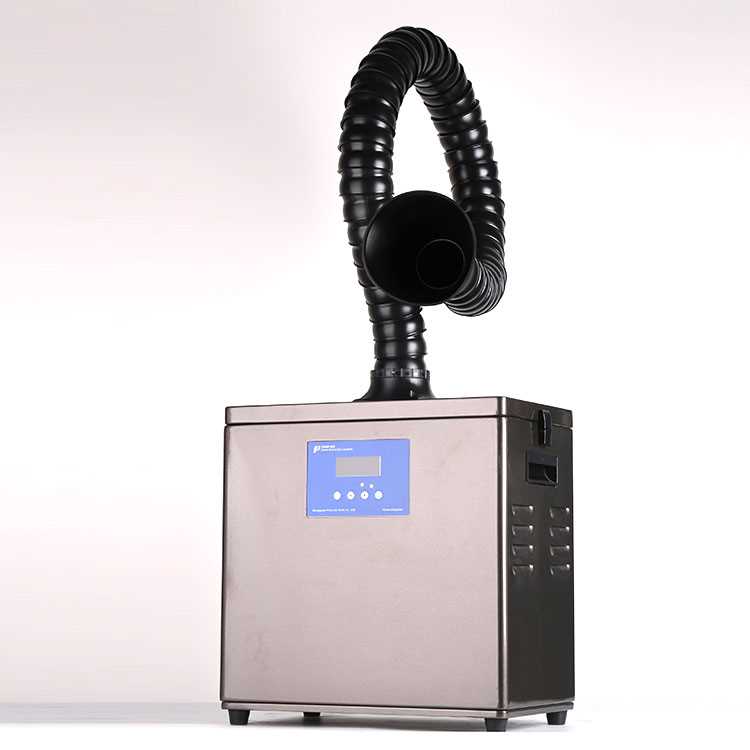

Soldering Fume Extractor with single free-standing arm & CE Certification
FOB Reference Price / Min.Order Quantity
USD
450.00-650.00
/ Piece/Pieces |
1.00 Piece/Pieces (Min. Order)
Processing Time:1-2 weeks
Packaging Details:
Packed by plywood crate;Package dimension:405*410*480mm
Port: ShenZen
Payment Terms: , ,
|
Filter Elements Data
|
|
Item
|
Technical Data
|
Remark
|
|
Pre-filter
|
F5 class, life-time 1-3 months
|
All sticker enclosed.
|
|
Main-filter
|
F14 class HEPA, life-time 6-12 months
|
Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
|
|
Air-filter
|
Chemical material, life-time 6-12
months
|
Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
|
|
Average filtration rate
|
≥99.7%
|
It will be a little fluctuation according to different materials
|
5. Fume Extractor Technical Paremeters
|
Blower Technical Data
|
|
Item
|
Technical Data
|
Remark
|
|
Running period
|
more than 30,000h
|
One year guarantee
|
|
Max. air flow
|
300m³/h
|
Electronic speed control
|
|
Input capacity
|
120W
|
Low capacity
|
|
Air pressure
|
2300pa
|
High pressure
|
|
Running sound
|
≤45dBA
|
Low sound volume
|
|
Input power
|
110/220V, 50Hz/60Hz
|
International standard
|
|
Equipment Data
|
|
Item
|
Technical Data
|
Remark
|
|
Fume & dust inlet
|
50mm
|
Single/double fume inlets, include one/two set fume extract tube
|
|
Fresh air outlet
|
100mm
|
Shutter
|
|
Machine weight
|
15KG(N.W.)
|
Machine with all elements
|
|
Dimension
|
310*330*450mm
|
Machine size
|
|
Package dimension
|
405*410*480mm
|
Packed by plywood crate
|

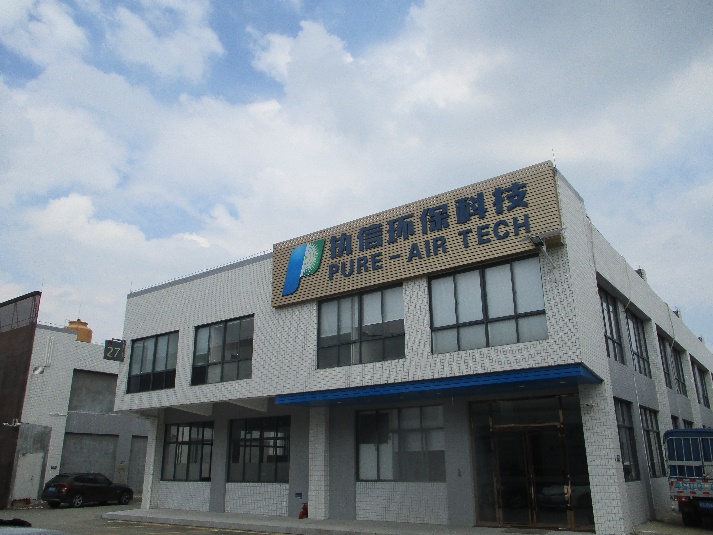

Dongguan Pure-Air Tech Co., Limited
