Architectural Aluminium Perforated Facade Panel for Buildings

FOB Reference Price / Min.Order Quantity

USD 0.00-0.00 / Square Meter/Square Meters | 100.00 Square Meter/Square Meters (Min. Order)

Processing Time:15-20 days after receiving the deposit and confirm the details

Packaging Details: Customized package(Packed in Standard export carton with protective foam)

Port: Guangzhou, Shenzhen, Zhuhai, Foshan, Shund

Payment Terms: , ,

Product Details Company Profile

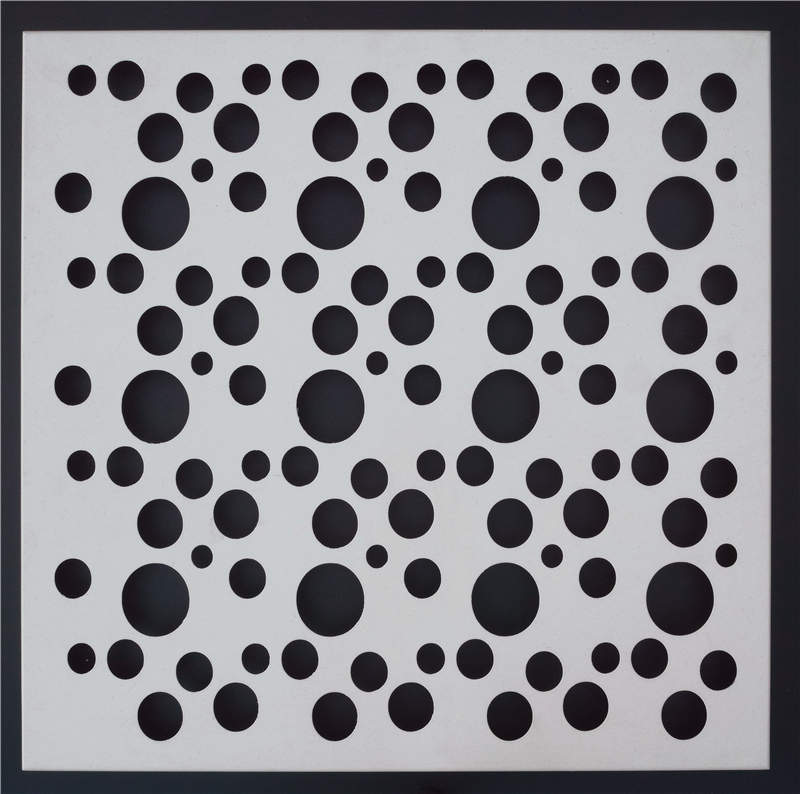

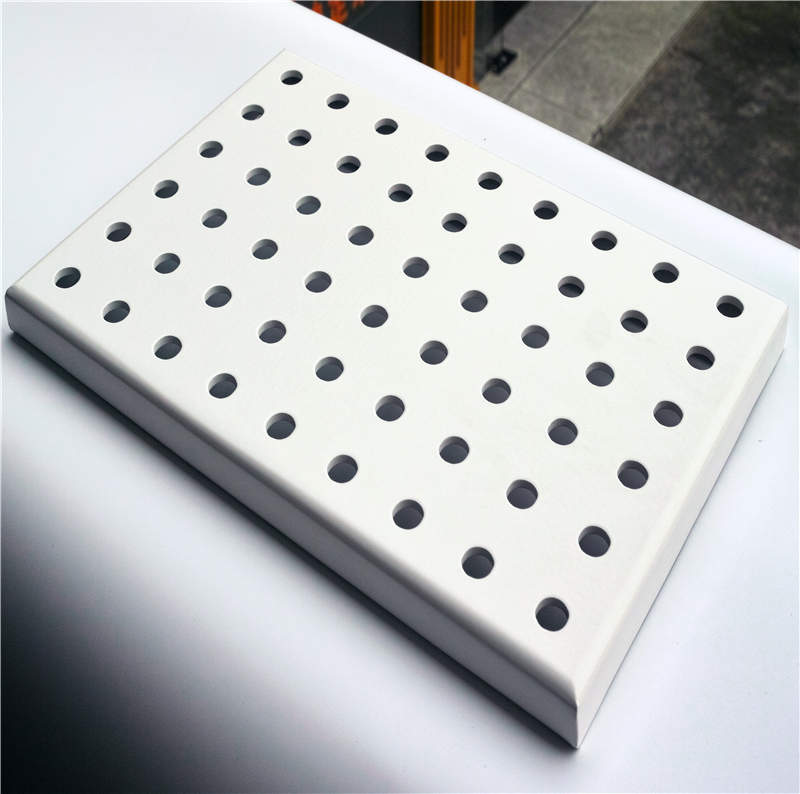

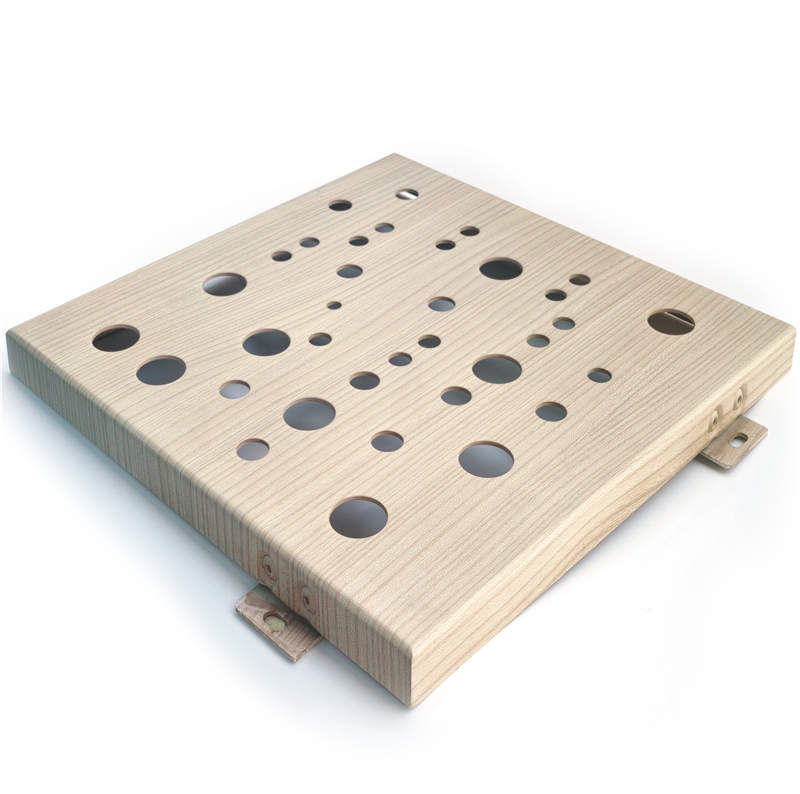

Architectural Aluminium Perforated Facade Panel for Buildings

Aluminum Perforated Panel

ITEM	DETAILS
Product Name	Aluminum Perforated Panel
Aluminum Alloy	1100,3003
Panel thickness	2.0~5mm or customized thickness
Max size	2000*7000mm
Surface treatment	PE coated
	PVDF 2/3/4 Layer coating
	Powder coating
	Wood grain (wood grain paper /Therminal transfer printing / wood grain painting)
Color	RAL color, Pantone color
Shape	Flat, cambered, double curved, triple curved, spherical, customized shaped.
Warranty	10-15 years guarantee for ideal application evvironment
Packaging	Carton package
Leadtime	10-20 days after receiving the deposit and confirm the details

PVDF coating Aluminum Perforated Panel Product Application

solid aluminum sheet is used aluminum or aluminum alloy as the raw material, the processing of molding and decorative surface protective and decorative coating of architectural aluminum cladding. The use of internationally renowned brands of the United States PPG, Japan's state legislature fluorocarbon coating company, the PVDF content of not less than 70 percent, to ensure that the color and durability of excellent quality. Our production of fluorocarbon liquid sprayed aluminum sheet by the State Building Materials Quality Supervision and Inspection Center testing, product performance in full compliance with "building decorative aluminum sheet," the national standards.

SPECIFICATIONS
Thickness:	2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm
Width:	1000mm-1900mm
Length:	≤ 6000mm
Finished prodcuts size:	Machinable molding length ≤ 6000mm, width ≤ 1500mm, height ≤ 1.9mm.
Special size:	Conventional circular plate forming radius ≥ 150mm Special can make modle.
Punching hole:	punching aperture ≤ 80mm hole shape, size, spacing can be customized according to customer requirements.

Why Aluminum solid panels?

1) light weight, good rigidity, high strength

2) FReffect, good fire performance

3) good weather resistance and UV resistance, excellent acid and alkali resistance; in the normal outdoor conditions, 20 years fade is not obvious;

4) aluminum can be welded and drawing processing, processing performance, and can be processed into a flat, curved surface, spherical surface, tower and other complex shapes;

5) as a protective coating on the surface, it is not easy to stain, easy cleaning and maintenance;

6) color widely, nice, excellent decoration;

7) recovery of high value, non-polluting, environmentally

8) As the shape of aluminum sheet and spraying have been completed in the factory, on-site installation of fast and convenient installation.

We can provide customized Aluminum Perforated Panel .
