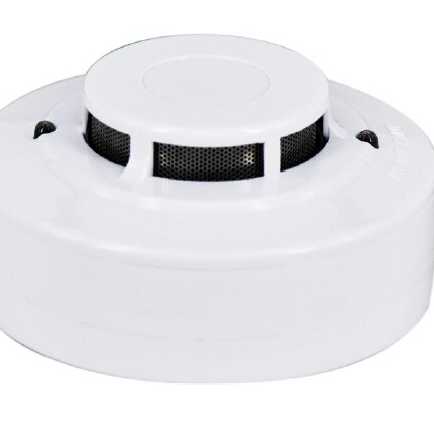

Analogue Addressable Smoke Detector

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Key Features
1.Dual LEDs for 360º visibility
2.Easy installation and maintenance
3.Sleek low-profile housing design
4.Durable sensor head, no need for replacement
5.SMD circuit board design-satisfactory quality and reliability guaranteed

MODEL:
AS119-2:2-wire Addressable Smoke Alarm
AS119-2L:2-wire Addressable Smoke Alarm with Remote LED Output

TECHNICAL SPECIFICATION

Supply Voltage	Loop Powered 17-30 V
Quiescent Current	70 uA @ 24 VDC
Quiescent Current	200uA @ 17-30V Loop Powered
Alarm Current	5mA (AS119-2) 16mA (AS119-2L)
Smoke Sensitivity	0.08~0.14db/m(EN standard) or 0.98~2.40%/FT
Reset Time	20 Seconds
Alarm Indicator	LED continuously emitting red light
Operating Temperature	-10 ºC to 55 ºC
Relative Humidity	0 to 95% RH,no condensation or icing
Color/ Case Material	White /ABS
Dimension /Wight	102mm(dia)x 43mm(ht) with base/135g/set
Base model	P/N992001
Standards / Certification	According to EN54-7

Analogue Addressable Smoke Detector
