Alcohol Recovery Tower Hit count 1218

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Description:

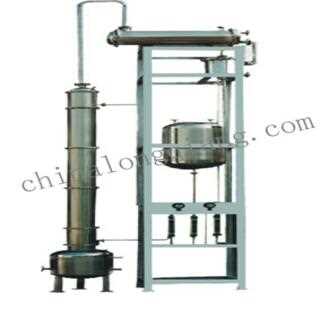

Alcohol Recovery Tower is made up of tower pot, tower body, condenser, cooler, buffer tank and high-level storage tank.The parts contacted with material are 0Cr19Ni9,so the equipment has good corrosion-resistant capability

Advantages:

Save energy, protect environment, reduce production cost and increase efficiency.

This device can distill thin alcohol of 30-50 degree to 93-95 degree, The residual liquid has low discharge alcohol content ,which is in accordance with environment protection requirement.The device adopts highly-effective stainless steel corrugated loading material.The equipment surface is mirror finished.It is in accordance with GMP medical standards

Model Specifications	QN-300	QN-500	QN-700	QN-1000
Tower height degree（mm)	200	300	400	800
High tower(m)	6	7	7	11
volume of tower （L）	600	1120	1450	2200
Retrieve ability （kg/h)	80L	120L	150L	400L
Retrieve the density （％）	≤95	≤95	≤95	≤95
Heating evaporation pressure(MPa)	0.3	0.3	0.3	0.3
Heating area (m²)	3.5	4.8	8.3	16
Area of condensation (㎡)	6.7	8.8	11	21
Cooling area （m²)	2	3	3.5	6
Equipment weight(kg)	1250	1800	2200	6500
External dimensions	2300X700X800	2600X800X9000	2600X1100X10000	4000X1800X14000
