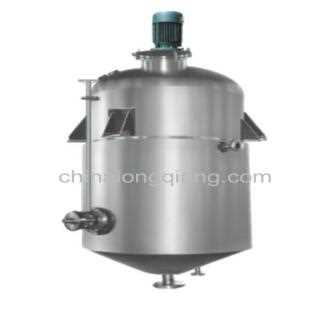

Alcohol Deposition Tank Hit count 1086

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Description:

It is applicable to the alcohol deposition of oral liquid of Chinese herb, pharmacy, food, light industry and chemical engineering walks for thin alcohol. Alcohol deposition tank is the main equipment for the deposition of alcohol.

1.Constructure material:SUS304 or SUS316

2.Mechanical seal

3.It is equiped with high pressure automatic cleaning ball and explosion proof motor

4.It meets to GMP standard.

Parameters:

type specifications		JC-300	JC-500	JC-1000	JC-1500	JC-2000	JC-3000	JC-6000
volume（m³）		0.3	0.5	1.0	1.5	2.0	3.0	6.0
Heat exchanging area （㎡）		1.8	3.0	4.5	6.5	7.5	8.5	13
Working temperature		Normal temperature～-15 ℃
Pressure in the jacket		0.25Mpa
Pressure in the tank		0.01Mpa
Heat transfer coefficient		150-200Kj/㎡h℃
Mixing power （Kw）		0.75	0.75	1.5	2.2	2.2	3.0	5.0
Mixing speed (r/min）		250	250	160	125	125	125	125
equipment Weight		512Kg	1250 Kg	1480 Kg	1750 Kg	1880 Kg	2200 Kg	4000Kg
External dimensions (mm)	D	600	800	1000	1200	1300	1400	1600
	D²	850	1050	1300	1550	1650	1750	2000
	H	900	900	1200	1200	1300	1400	2700
