AT309 Restaurant Hotel Coin Operated Breathalyzer Alcohol Tester For Bar

AT309 is a coin-operated and wall-mount breath alcohol tester which is suitable for public use in bars, restaurants, nightclubs, big companies or anywhere alcohol is consumed. Fuel-cell sensor enables police-grade accuracy and user-friendly operation process ensures users to do their own alcohol tests conveniently. With absolutely no inventory to maintain and its competitive price with reliable performance, it is so easy to make a profitable coin-operated vending business.

 AT309 Feature

Suitable for bar or restaurant, hotel, disco etc

Fuel Cell Sensor, Sensor Module rechangeable
Coin operated
Used by disposable straw
Straw box for 200pcs straw one time
Other language panel offered

Audio and light warning method
Test result with 4 digits display
Large lighting block to indicate the operating procedure on the panel
Power by AC adaptor 110/220V

Setup 1 kind coin with 1-15 pcs
Press straw dispenser to get 1 straw

Sensor type: Electrochemical (fuel cell) alcohol sensor, Module changeable

Test Range: 0.000~2.000mg/l

(0.400%B.A.C; 4.000‰B.A.C; 4.000g/l;)

Alarming level:

Pass level: 0.090mg/L (could be modified)

Fail level:  0.250mg/L (could be modified)

Accuracy: ±10%

Work temperature: -10°C~50°C

Work humidity: less than 95%RH (No Dews)

Battery: 2×AA NiMH batteries, rating capacity: 2.1AH

Dimension l×b×h: (mm) 250×105×400

Indication manner: mg/l,mg/100ml,g/l ,% BAC optional

Coin for single time: 0—15 (For 0, the tester can be tested without coin).

Coin diameter: 20mm – 28mm

Coin thickness: 1.2mm – 2.5mm

Coins Capacity: about 200 pieces

Straw capacity: 200pcs(less than 7mm)

Breath sampling time: about 5 seconds continuous breath.



Certificate: CE, RoHS



Package:

Standard: Carton packing for each piece.

1pc per carton, 9.00Kgs per carton

Hanwei Electronics Group Corporation

Basic Information

Business Type:Manufacturer, Trading Company

Main Products:Gas Alarm,Alcohol Tester,Gas Controller,Gas Detector,Gas Detection System

Location:

Total Employees: 501 - 1000 People

Year Established: 1998

Trade Information

Top 3 Markets:

Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF

Nearest Port:

Average Lead Time:10

Overseas Office: No

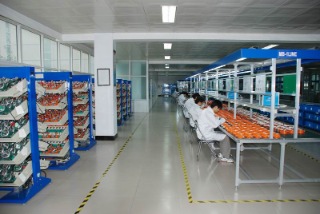

Company Pictures
