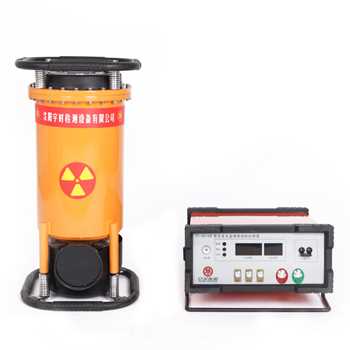

Model XXQ/2005A XXQ/2505A XXQ/3005A XXQHZ/2005A XXQHZ/2505A XXQHZ/3005A XXG/2005A XXG2505A XXG/3005A XXGHZ/2005A XXGHZ/2505A XXGHZ/3005A Power Supply 160V - 255V　　　　 50 - 60HZ Power Capacity >1.5KVA >2.0KVA >2.5KVA Tube Voltage 100KV-200KV 150KV-250KV 170KV-300KV Tube Current 5mA X-Ray Generator Size (mm)Ф×H φ240×590 φ260×675 φ300×780 φ240×590 φ260×675 φ300×780 φ230×550 φ270×580 φ280×650 φ230×550 φ270×580 φ280×650 X - Ray Beam Cone Angle 40° 25°× 360° 40°× 360° 40° Controller Size（mm） 350×300×135 Controller Weight 10kg Controller Delaying Time 0 - 1 min. Timing Range and Error 9.9 min    Minute Error ±1% Working Mode Intermittent Work 1:1  Work 5 mins rest 5 mins Insulation SF6 Gas Cooling Radiator forced air cooling Safety Working Pressure 0.35 - 0.6 Mpa X-Ray Generator Weight(kg) 23 33 46 22 32 43 24 31 34 23 30 33 Max. Penetration (mm) 29 39 48 26 37 46 23 34 44 30 40 50 Working Conditions of X-ray Photography 1. Focus to Film: 600mm 2. Exposure time: 5 min. 3. Film: TianJin, Model III, intensified by double lead foil. 4. Treatment in the darkroom: Temp. 20 ±2ºC, 5 min. blackness ≥ 1.5. sensitivity≤2%
