60x6 HSP60-6-BIPV265M HSP60-6-BIPV285M BIPV MONOCRYSTALLINE SOLAR MODULE

FOB Reference Price / Min.Order Quantity

USD 0.30-0.60 / Piece/Pieces | 200000.00 Piece/Pieces (Min. Order)

Processing Time:7

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai

Payment Terms: , , , , ,

Product Details Company Profile

【Product name】

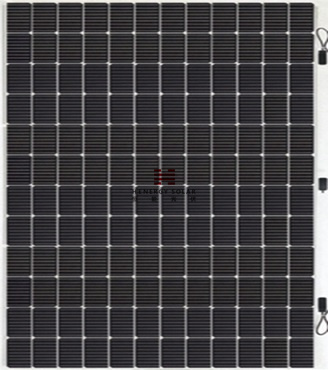

60x6"/HSP60-6-BIPV265M~HSP60-6-BIPV285M BIPV MONOCRYSTALLINE SOLAR MODULE

【Product model】

HSP60-6-BIPV285M

【Product description】

Certifications for Incentives

   Quality, Environment, Health & Safety
   > ISO9001:2008, ISO14001:2004, OHSAS18001:2007
   > Full Member PV Cycle Association AISBL

Product Certifications
   > Quality and Robustness: IEC61215:2005
   > Safety: IEC61730 -1/-2, MCS, CEC, UL
   > Resistance to salt corrosion (salt fog): IEC61701:2000
   > Resistance to ammonia fumes: Ammonia Resistance Test

25 Year Linear Power Guarantee
   Commercial
   > 12 years on material and manufacturing defects
   Performance
   > Power not less than 90% of power peak during the first 12 years
   > Power not less than 80% of power peak during the subsequent 13 years.

【Product introduction】

Electrical Characteristics at STC

TYPE		HSP60-6-265M	HSP60-6-270M	HSP60-6-275M	HSP60-6-280M	HSP60-6-285M
Maximum Power	Pmax(W)	265W	270W	275W	280W	285W
Tolerance Value for Power	%	0~+3%	0~+3%	0~+3%	0~+3%	0~+3%
Maximum Power Voltage	Vmpp(V)	30.50	30.80	30.90	31.00	31.20
Maximum Power Current	Impp(A)	8.69	8.78	8.91	9.02	9.13
Open Circuit Voltage	Voc(V)	38.20	38.40	38.50	38.70	38.80
Short Circuit Current	Isc(A)	9.15	9.27	9.36	9.47	9.56
Module Efficiency	η	>16.20%	>16.50%	>16.80%	>17.10%	>17.40%

Performance at STC: Irradiance of 1000W/m² , Module temperature 77±3.6℉(25±2℃)
AM 1.5 Power measurement tolerance: ±3%

Temperature Coefficients(Tc)
Temperature Coefficient of VOC(β)	-0.33%/°C
Temperature Coefficient of ISC(α)	+0.03%/°C
Temperature Coefficient of Pmax	-0.41%/°C
Nominal Operating Cell Temperature(NOCT)	45±2°C

Permissible Operating Conditions
Maximum system voltage	1500VDC
Operating temperature	-40~+85°C
Maximum Surface Load Capacity	Test up to 5400Pa according to IEC61215 (Advanced test)
Resistance Against Hail	Maximum diameter of 1in.(25mm) impact speed of 51.5mph(23m/s)

Mechanical specifications
Cells	Monocrystalline cell, 6 "(6x10), 4BB
Junction box	IP67,combined with 3 by-pass diodes
Front Glass Thickness	High transparency, low iron, tempered glass 3.2 mm (AR-coating), Double Class
Connecting Cable/Connector	MC4 compatible connector/4mm² diameter, 900mm length
Frame Dimension	16589926.5 mm
Weight	24.00KG

Packing Features
Frame Height	40mm
Qty/ Pallet (PCS) / 20GP container (PCS)	80 / 1120
Qty/ Pallet (PCS) / 40HC container (PCS)	80 / 2240
