Brief Introduction of PEX Jaw Crusher :
Raw materials: hard and soft ores with compressive strength less than 320 MPa
Capacity: 1-140t/h
Max feeding size: 480mm
Shipping ports: Shanghai, China
PEX Jaw Crusher is mainly used in the industries of metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, suitable to crush hard and soft ores with compressive strength less than 320 MPa. This machine can break material s into medium size and fine size.
See more products:
Hammer Crusher Raymond Mill Micro powder grinding mill
Application :
Jaw Crusher Is usually used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramics, for crushing Mica, gypsum, fluorite, gem, jade, agate, limestone, dolomite, quartzite, ceramic soil, refractory clay, marble, granite, salt mine, phosphorus and other many stones into small size.
Working Principle :
Jaw crusher mainly consists of frame, eccentric shaft, jaw plate, connecting bar, adjustment part and spring.
The movable jaw goes upward and downward through eccentric shaft when belt and belt wheel are driven by the motor. The angle between movable jaw and bracket turns big when the movable jaw goes upward, which pushes the movable jaw plate to come closely to fixed jaw plate. At the same time, materials are crushed with the movement of the movable jaw.
When the movable jaw goes downward, the angle between movable jaw and bracket turns small. Under the force of spring and connecting bars, the movable jaw plate leaves fixed jaw plate, and the crushed materials with qualified size are discharged from the crushing cavity. With the continuous rotation of the motor, the movable jaw crushes and discharges materials, which, in turn, realizes the goal of mass production.
Benefit :
1. high crushing ratio, uniform particle size,
2. simple structure, reliable performance,
3. easy maintenance and economic operation.
Specifications :

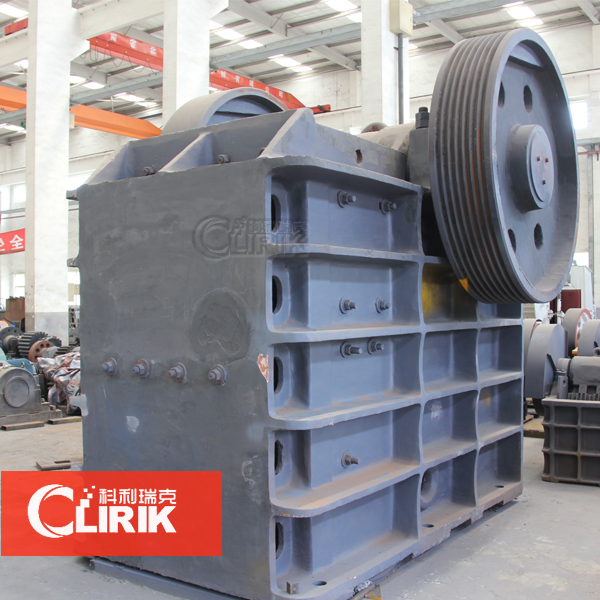

![50ton per hour CE&ISO Shanghai PEX Jaw Crusher with long Delivery time]()
Our Factory and Producing Capacity :
Shanghai Clirik Machinery Co., Ltd
![1-220t/h AC Motor PE Jaw Crusher for Crushing different kinds of stones]()
Our foreign sales team :
![YGM series 80-325 mesh 15 ton per hour High Pressure Grinding Mill for sale in india]()
Customers visit our factory usually :
![8-120t/h shanghai Secone crushing machine PC Hammer Crusher with good price]()
We are in Exhibition :
![1-220t/h AC Motor PE Jaw Crusher for Crushing different kinds of stones]()
Certification, patent and honor we have got :
CE, ISO9001, high and new technology enterprise, one of ten milling enterprises, excellent staff home, award of most concern product as HGM8201 supplier......
![R series 80-325 mesh 20 ton per hour 50t Raymond mill with different color made in china]()
Why Choose Us? :
We supply you good product with best price and best service!!!
![1-220t/h AC Motor PE Jaw Crusher for Crushing different kinds of stones]()
Please send to me your need, Kelly is looking forward to your message!
