30W Max 45W Vertical Micro Marine Wind Turbine

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Quick Details

Place of Origin: Fujian, China (Mainland)
Brand Name: SAIAM Marine Wind Turbine
Model Number: SAV-45W Marine Wind Turbine
Type: Wind Power Generator
Rated power: 30w Vertical Micro Marine Wind Turbine
Peak power: 45w Vertical Micro Marine Wind Turbine
Rated voltage: DC 12V 24V
Rated RPM: 300 rpm Vertical Micro Marine Wind Turbine
Start-up wind speed: 2m/s
Working wind speed: 2-20m/s
Rotor diameter: 560mm
Blade: 5pcs alumimium alloy
Appliacation: Fair demo/Diy/Camping/Small cabin etc.
Weight: 7.5kg

Packaging & Delivery

Packaging Details:	Each 30W Max 45W Vertical Micro Marine Wind Turbine was packed into one carton; Packing dimension:59.5x59.5x23cm; N.W/G.W:7.45/9.3kg; One 20ft container loading 330 sets.
Delivery Detail:	20 working days (3 days for sample order)

Specifications

30W Max 45W Vertical Micro Marine Wind Turbine
1.Start-up in low wind
2.Smart design
3.Easy to install
4.Quiet and safe

Product Description

Introduction

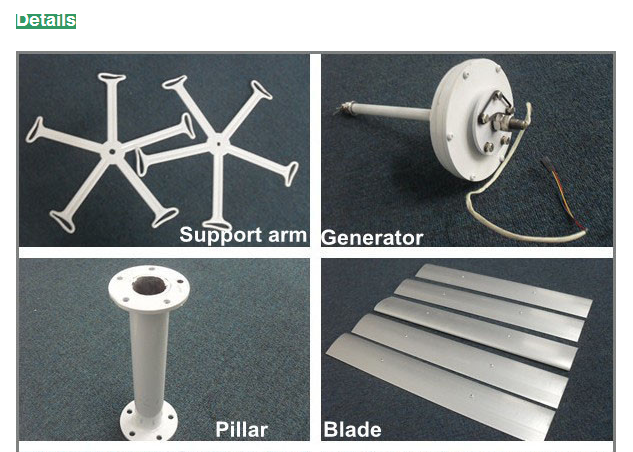

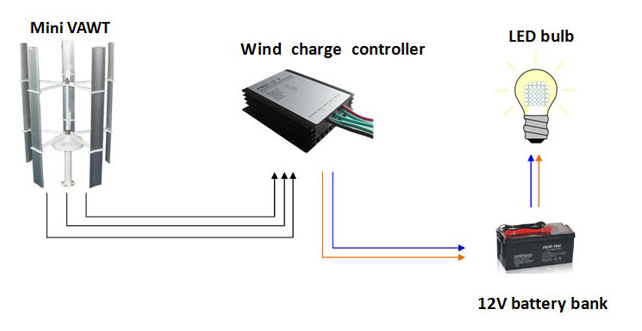

30W Max 45W Vertical Micro Marine Wind Turbine can be used by in any areas where has good wind resource. It can provide stable and reliable electricity for lighting, household electrical appliances. It is ideal power supply equipment for families and companies.The whole unit consists of pillar, wind generator, blades, flanges and rectifier. The Mill is pushed by wind at speed from 3m/s to 20m/s to rotate to make the generator produce power in AC form. Then the power will be changed into DC form by the rectifier.

Feature

1. Self starting in low wind

2. Low noise and vibration, no be affected by turbulence

3. Capture wind from any direction, no limit on terrain, low requirement on mast height and floor space

4. Aluminum alloy integral extrusion molding achieves high strength and light weight

5. Simple module structure, easy for installation and maintenance

6. Birds friendly

Specification

Performance
Rated power	30W @10m/s
Peak power	45W
Start-up wind speed	2m/s
Working wind speed	3-20m/s
Survival wind speed	35m/s
Noise	≤40dB
Rotor
Rotor diameter	560mm
Swept area	0.3m²
Blade	5pcs alumimium alloy
Blade length	525mm
Shell material	Erosion resistant aluminum
Rated RPM	300
Weight	7.5KG
Others
Generator type	3-phase AC PM, gearless
Speed regulation & protection	overvoltage charge controlling
Controller rated voltage	DC 12/24V
Suggested battery capacity	2pcs 9AH/12VDC
Suggested tower	3-4m guyed cable tower
Working temperature	-30-50°c
Power curve
