300RPM UIP large flow liquid metering chocolate dispensing peristaltic pump supplier

FOB Reference Price / Min.Order Quantity

USD 359.00-419.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:shipped in 5 working days after payment

Packaging Details: in cartons for Kamoer UIP large flow liquid metering chocolate dispensing oem peristaltic pump

Port: shanghai

Payment Terms: L/C , T/T , other

Product Details Company Profile

Lab UIP smart peristaltic pump

Lab-UIP’s wall thickness is 1.6mm or 2.5mm, Flow range is from 1 ml/min to 1300ml/min, and the motor’s life is more than 6000 hours. For this pump, it is controlled by microcomputer touch screen, and having 5 working mode, it is Continuous mode, time mode, Volume mode, Copy mode, planning mode. It can be used in various field’s working by this 5 working mode .
Features

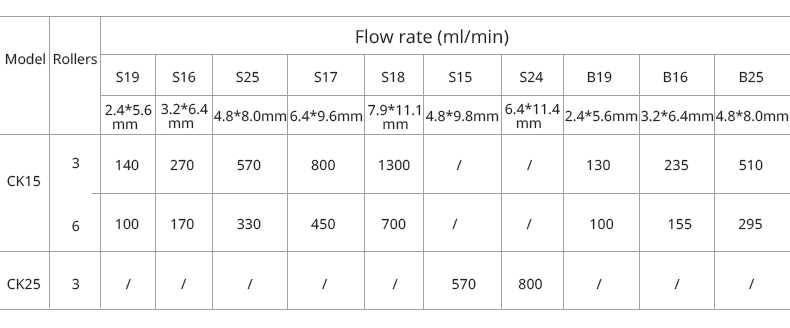

Flow rate: 1~1300ml/min
Small size, big flow
Can be used in viscous or
non-viscous liquid transferring
Easy to change the tube
Stainless steel rotor, long life
Stepper motor, high precision control
Thick wall thickness, can stand high pressure
With five working mode, easy to use
Connecting the sensors device, automated
working
Easily to make multiple machine connecting
Advanced way to make an calibration

Applications

Medical equipment,Fill and subpackage,Scientific research institution,Food and factory lines

Parameters

Size:295mmX158mmx240mm(Contains the handle)
Working voltage: 110~220V AC
Max speed:300rpm
Langauge:Chinese/English
Max power:25w
Speed control resolution:0.1rpm
External control:Temp sensor, liquid sensor, multiple machine connecting, rack, foot switch
Motor’s life:≥6000h

Instruction of five working mode

Continuous working mode:
If you choose this mode, the pump will keep running until you stop it manually.
Timing working mode:
Set your specific need for time interval between starting time and finishing time.
Quantitative working mode:
If you set a requested volume of liquid, then the pump will do so
Copying working mode:
Without a quantifier, you can set certain volume of liquid required and the pump will
remember this and continuously do so
Planning working mode:
Set the starting time according to your own agenda, the pump will operate as long as it is on.
