20w cable laser portable marker

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

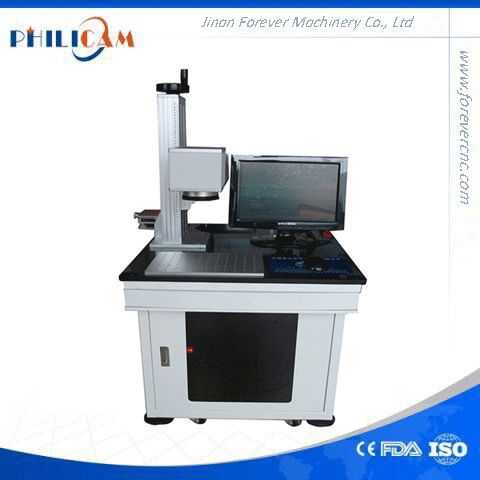

Product Pic.

Applicable industry

1.Used in clothing materials, medicine packages, wine packages, building ceramics beverage packages, cut fabrics, rubber products, nameplates, crafts and gifts electronics and leather products.

2.The equipment is able to engrave clear and fine graphics. Moreover, it requires no consumables and has the advantages of consistent performance. The maintenance interval is more than 20,000 hours for the complete equipment.

Parameter of cable laser marker

Model	FLDM30-Fiber
Laser power	30W
Laser Wavelength	1064±10nm
Divergence	0.3mard
Marking range	100100mm/300300mm
Minimum line width	0.01mm
Minimum character	0.1mm
Marking speed	10mm/s
Marking depth	0 ~0.5mm
Engraving line speed	≤15000mm/s
Repeatability accuracy	±0.001mm
Beam quality	1.2~1.8
Marking Format	Graphics, text, bar codes, two-dimensional code, automatically marking the date, batch number, serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
working voltage	220V±10%/50Hz/4A
Unit power	<0.5kw
Use of the environment	Clean and dust free or dust less
Working condition:Humidity	5%-75%,free of condensed water
Laser module life	>100000 hours
Net weight	125kg
Packing size	7009001380mm

Samples of cable laser marker

Advantages

1. Long lifetime. Ultra-low power consumption of 0.5 kw. Efficiency conversion reach to over 30%(Not suitable for stainless steel color marking ).

2. High quality laser path suitable for delicate marking. Reaching nearest to the limit of diffraction. Exporting TEMOO of fundamental transverse mode. M2 near to 1. Beam divergence angle is only 1/4 of diode laser. Focus dot diameter is not over 20 um.

3.Air cooling smart machine,small size,almost no need after sales service.
