2017 New design Smoke filter For Reflow Soldering
FOB Reference Price / Min.Order Quantity
USD
1350.00-1750.00
/ Piece/Pieces |
1.00 Piece/Pieces (Min. Order)
Processing Time:1-25days
Packaging Details:
1 unit machine pack in 1 strong plywood Box, Box dimension is 600*720*1330mm, G.W: 125.00KG
Port: ShenZhen
Payment Terms: , ,
|
Cartridge Filter Elements Data
|
|
Item
|
Technical Data
|
Remark
|
|
Cartridge Filter
|
H13 class HEPA PTFE cartridge Filter
|
High efficiency film filter
|
| Filter qty |
1pc
|
Filter cartridge size φ325*450MM
|
| Exhaust Arm |
1pc
|
Suck the welding fumes
|
|
Average filtration rate
|
≥99.9%
|
It will be a little fluctuation according to different materials.
|
|
Blower Technical Data
|
|
Item
|
Technical Data
|
Remark
|
|
Running period
|
more than 30,000h
|
One year guarantee
|
|
Max. air flow
|
1500m³/h
|
Electronic speed control
|
|
Input capacity
|
1.1KW
|
Low capacity
|
|
Filtration Area
|
12m2
|
High filtration rate
|
|
Running sound
|
≤65dBA
|
Low sound volume
|
|
Input power
|
380V,50HZ
|
International standard
|
|
Equipment Data
|
|
Item
|
Technical Data
|
Remark
|
|

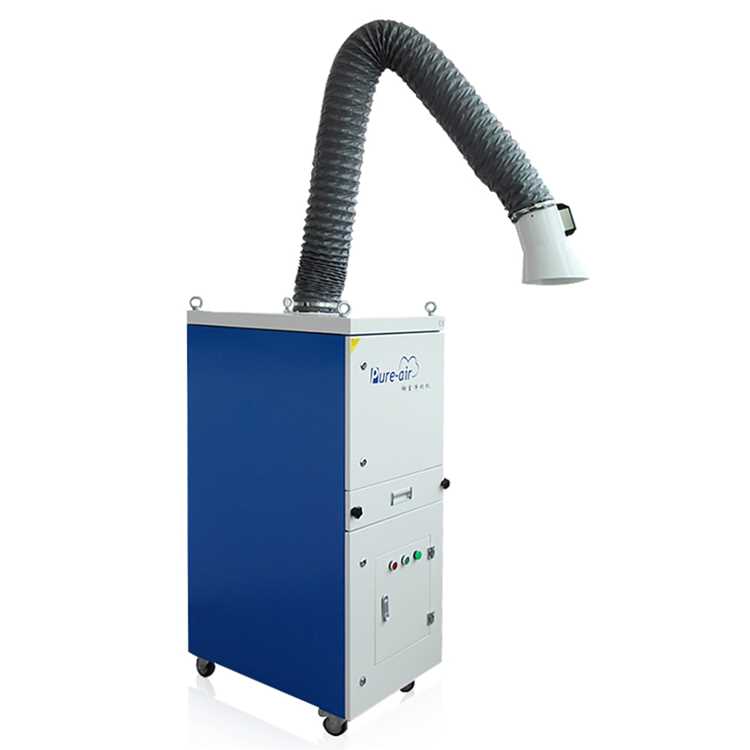

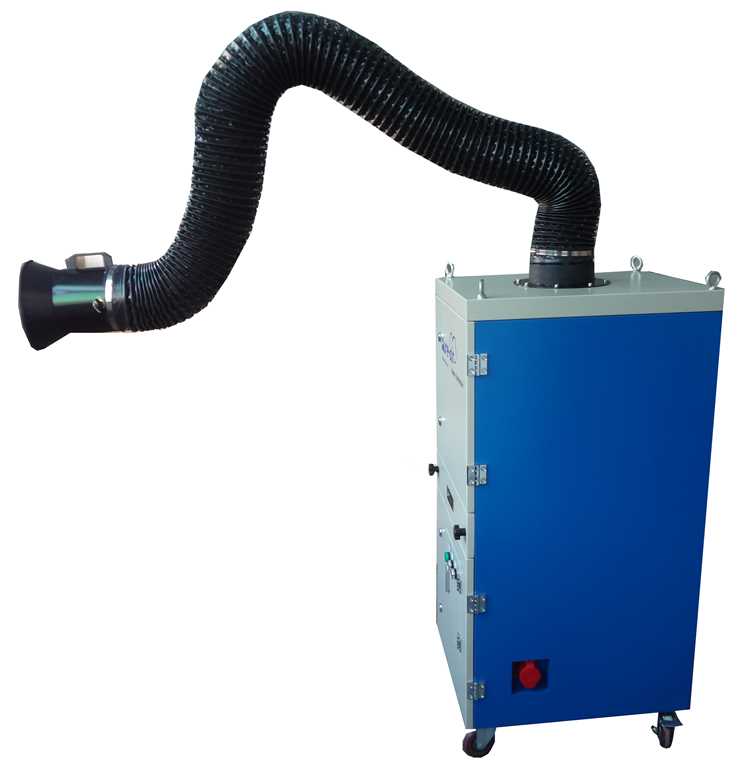

PA-1500SA
|
Carbon steel painting machine
|
Main components including: high temperature resistance vacuum hose, imported materials HEPA PTFE Cartridge Filter, dust drawer, casters with the brake, fans, motors and electronic control box, exhaust arm.
|
|
Dust Cleaning Way
|
Automatic blowback cleaning system
|
Using automatic cleaning system, installed the differential pressure monitoring device in front of filter and back the filter, when the filter pressure to reach the specified value, to connect air compressor, start the automatic anti-blowing system and doing high pressure blow back from inside of filter.
|
|
Fume & dust inlet
|
100mm
|
Single Air inlets, include 1pc air hose φ100mm*3000mm(L)
|
|
Fresh air outlet
|
100mm
|
Shutter holes
|
|
Machine weight
|
95KG (N.W.)
|
Machine with all elements
|
|
Dimension
|
500*620*1180mm
|
Machine size
|
|
Package dimension
|
600*720*1330mm
|
Packed by plywood crate
|
