12v 10w 0/1-10V/PWM LED driver dimmable led driver Wholesale dimmable led driver

FOB Reference Price / Min.Order Quantity

USD 0.00-0.00 / Piece/Pieces | 1.00 Piece/Pieces (Min. Order)

Processing Time:5 days after deposit

Packaging Details: cartons

Port: Shenzhen

Payment Terms: , , ,

Product Details Company Profile

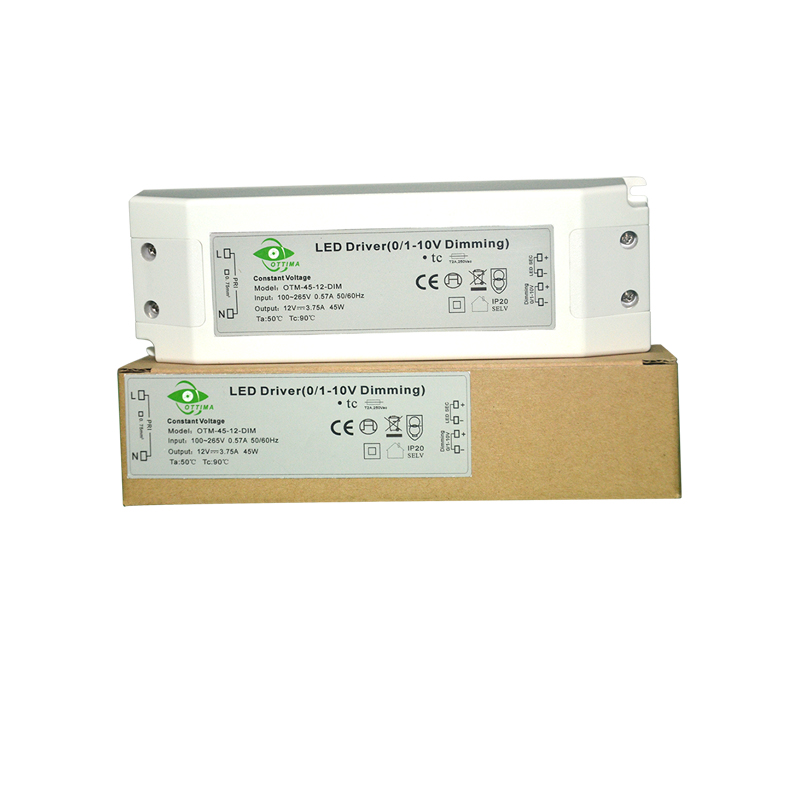

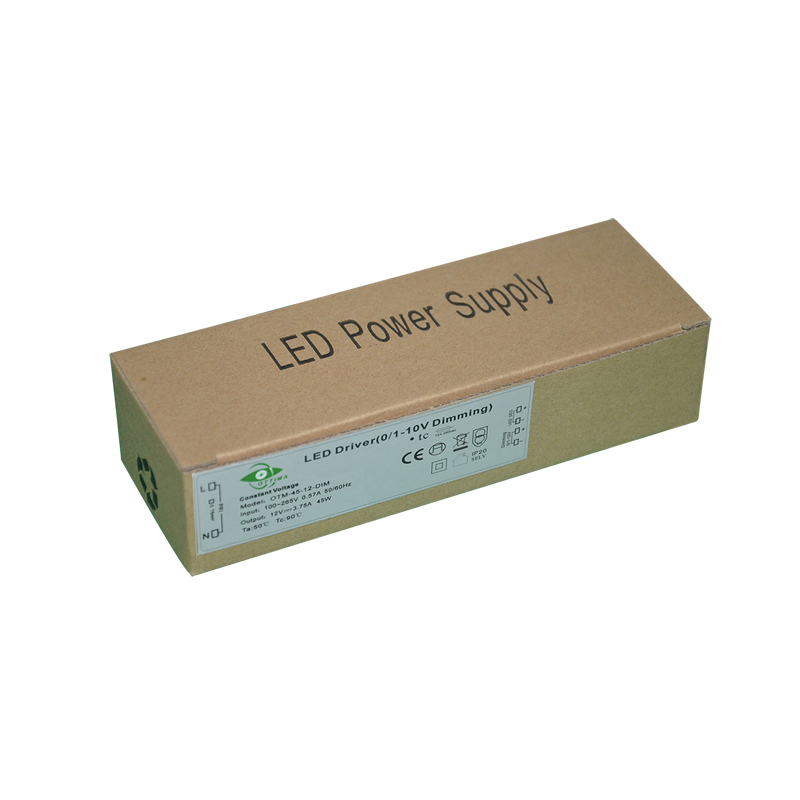

12v 10w 0/1-10V/PWM LED driver dimmable led driver Wholesale dimmable led driver

10w 12v constant voltage plastic housing 0/1-10V/PWM dimming smooth high efficiency power supply

12vdc 10W IP20 constant voltage 0/1-10V/PWM LED driver

0/1-10V dimmable LED driver Specification:

Part Number	OTM-PD10-12
Type	Constant voltage type
Power	10W
Input voltage	100-265Vac
Output voltage	12Vdc
Output current	0.83A
Dimmable	0/1-10V/PWM dimmable
IP grade	IP20
PF	>0.95
Dimming range	0-100%
Dimension	1404528mm
Certificate	CE,RoHS,SAA,ETL,CB,UL standard
Warranty	5 years warranty
Label	We can print your logo free on the led driver

OTTIMA LED driver 0/1-10/PWM dimmable feature

1.100-265VAC Universal AC input/Full range

2. Built-in active PFC function

3. High efficiency up to 86%

4. Protections: Short circuit/Over current/Over loading/Over temperature

5. Cooling by free air convection

6. IP20 and IP67 design for indoor or outdoor installation

7. 3 in 1 dimming function(0/1-10Vdc or PWM signal or resistance)

8. Dimming range: 0-100%

9. Suitable for LED lighting and moving sign applications

10. Compliance to worldwide safety regulations for lighting

11. 5 years warranty

We are a worldwide supplier of LED Driver established in 2006. Our products such as LED Driver, LED Power and LED Adaptor are CE, ROHS, SAA, C-tick, RCM, FCC and ETL approved.

For more information about LED adaptor, please click here.
