China NRS Rubber Gate Valve PN16 Manufacturer

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Product Details Company Profile

Specifications

China NRS Rubber Gate Valve PN16 Manufacturer
1.DIN3352 F4 rubber sealed gate valve
2.CE,ISO9001:2008
3.15 years

China NRS Rubber Gate Valve PN16 Manufacturer

Product Description

Resilient seated gate valves are the perfect solution as a closing device in pipeline systems. Be suitable in applications with water supply, sewage treatment and neutral liquids in the mining industry, enterprises and high buildings.

We design and manufacture BS5163, DIN3352, AWWA C515/509, SABS664, AS2638, JIS B2062, socket end resilient seated gate valve etc.

Here we are introduce one type of our DIN3352 gate valve

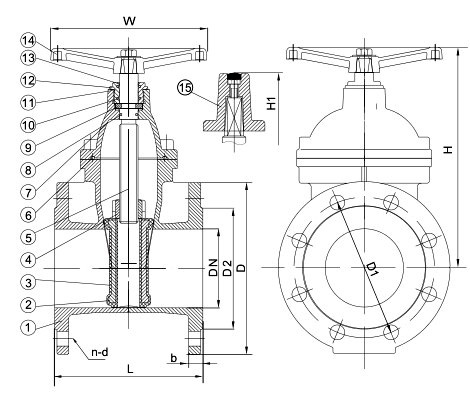

Material List

No.	Part	Material
1	Body, bonnet	Grey cast iron/ductile iron + fusion bonded epoxy coating
2	Disc	Grey cast iron/ductile iron + NBR/EPDM/FPM
3	Stem	Stainless steel 2Cr13
4	Stem nut, bushing	cast brass/bronze
5	Washer, O-ring	NBR/EPDM/FBM

Features &Advantages

Stem sealed with O-rings: realize zero leakage, O-rings could be replaced under full pressure.
Bolted bonnet, full bore:used for larger valves and higher pressure applications.
Rubber encapsulated wedge: excellent elastic memory, ensure sealing effect.
Blue fusion boned epoxy coated inside and outside: suitable for portable water.
Working pressure from -1 to +16 bar and working temperature from -10 to +80°C

Technical Specification
