Product Description

Features

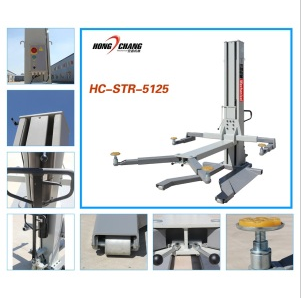

Movable Design with Hydraulic pump
Save voltage  Buttons Operation
Vibo Aluminum Cover Motor with Overheat Protection
Hidden Oil Pipe & Power Cable and Column Inside Cover
Max Height Limitation Switch
Adjustable Rubber Supporting with Heighten Sleeve
Hydraulic Parachute valve Equipped
Technical Specifications
Power Supply	230V, 1Ph; 400V, 3Ph
Motor Power	2.2Kw/3.0Kw
Rated Lifting Capacity	2500KG
Max/Min. Lifting Height	1800mm/125mm
Up/Down Time	50s/45s (adjustable)
Post Height From Floor	2516mm
Total Width Maximum	3000mm
Total Depth Maximum	2000mm
Passing Through Width	2600mm
a) Shorter Telescopic Arm Range	70mm-270mm
b)Longer Telescopic Arm Range	600mm-850mm
c) Beam Telescopic Range	0mm-230mm
Packing Information
Packing Material	Iron Frame for Lift
Net Weight	735Kg
Gross Weight	785Kg
Packing Dimension	6pcs Packages 1) Bottom Plate 2) Lifting Frame 3) Mobile Trolley 4) Post 5) Power Unit 6) Small Accessories
Full Container Load Quantity	20pcs/20GP
