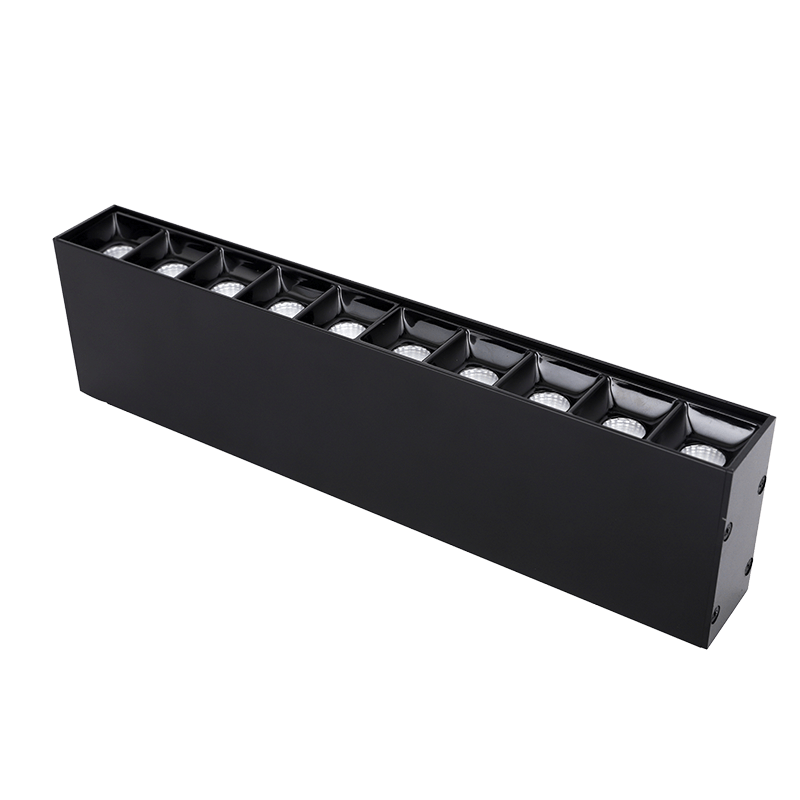

LED Linear Light LL-SM  dimmable LED Linear Light  Black LED Linear Light manufacturer

Model: JST-LL-SM

Wattage: 5W-45W

LED Chip: OSRAM3030/Philips3030

Driver Brand: OSRAM/Philips/Lifud

RA: ＞90

Finish Color: White/Black/Customized

Beam Angle: 15°/30°/45°

Length: 138mm-1200mm

Installation: Surface mounted/Suspend

Description

LED Linear Light Series the lamp body, in fashionable design,is made of 6063 section aluminum and PC reflector. It is combined LED lighting with building harmoniously. Creat a circle of light from a line of LED downlights, A narrow line of nano LED downlights for pure minimalism, three choices of beam angle 15°/30°/45°, Brilliant quality, more than 50,000 hours life span.

Long lifespan LED Linear Light Advantages

1. Connect freely, easy fixing

2. 5 different types of corner connectors application

3. End caps assembled by mechanical screws and magnet structure

4. Ladder type structure design, convenient for disassemble

5. Build-in 0-10V dimming function

6. UGR＜19

Specification

Model	Power	CRI	CCT	PF	Current	Input Voltage	Beam Angle	Dimension
JST-LL-SM	5W	>80/90	2700K-5000K	>0.65	0.70A	AC220-240V	15°/30°/45°	L138*W33*H60mm
JST-LL-SM	10W	>80/90	2700K-5000K	>0.90	0.7A	AC220-240V	15°/30°/45°	L270*W33*H60mm
JST-LL-SM	20W	>80/90	2700K-5000K	>0.90	0.70A	AC220-240V	15°/30°/45°	L535*W33*H60mm
JST-LL-SM	30W	>80/90	2700K-5000K	>0.90	0.60A	AC220-240V	15°/30°/45°	L800*W33*H60mm
JST-LL-SM	40W	>80/90	2700K-5000K	>0.90	1.20A	AC220-240V	15°/30°/45°	L1000*W33*H60mm
JST-LL-SM	45W	>80/90	2700K-5000K	>0.90	1.30A	AC220-240V	15°/30°/45°	L1200*W33*H60mm

Application

Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets etc.



As a professional LED downlights exporter, we can supply high quality energy saving downlights with cheap price.
