shanman small jaw crusher machine

FOB Reference Price / Min.Order Quantity

USD 29000.00-39000.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:30 working days receive payment

Packaging Details: container

Port: qingdao

Payment Terms: ,

Product Details Company Profile

Shanman machinery

model: GSH2540

max feeding: 210mm

adjustment range: 20-80mm

capacity: 10-20t/h

Power: 45kw

size of feeder: 250*400mm

price:$25000-35000mm

Certifiacte: CE, ISO9001

application: can be used for crush hard stones, such as granite, marble, feldspar,calcite,gabbro stone, limestone, basalt, Construction waste etc.

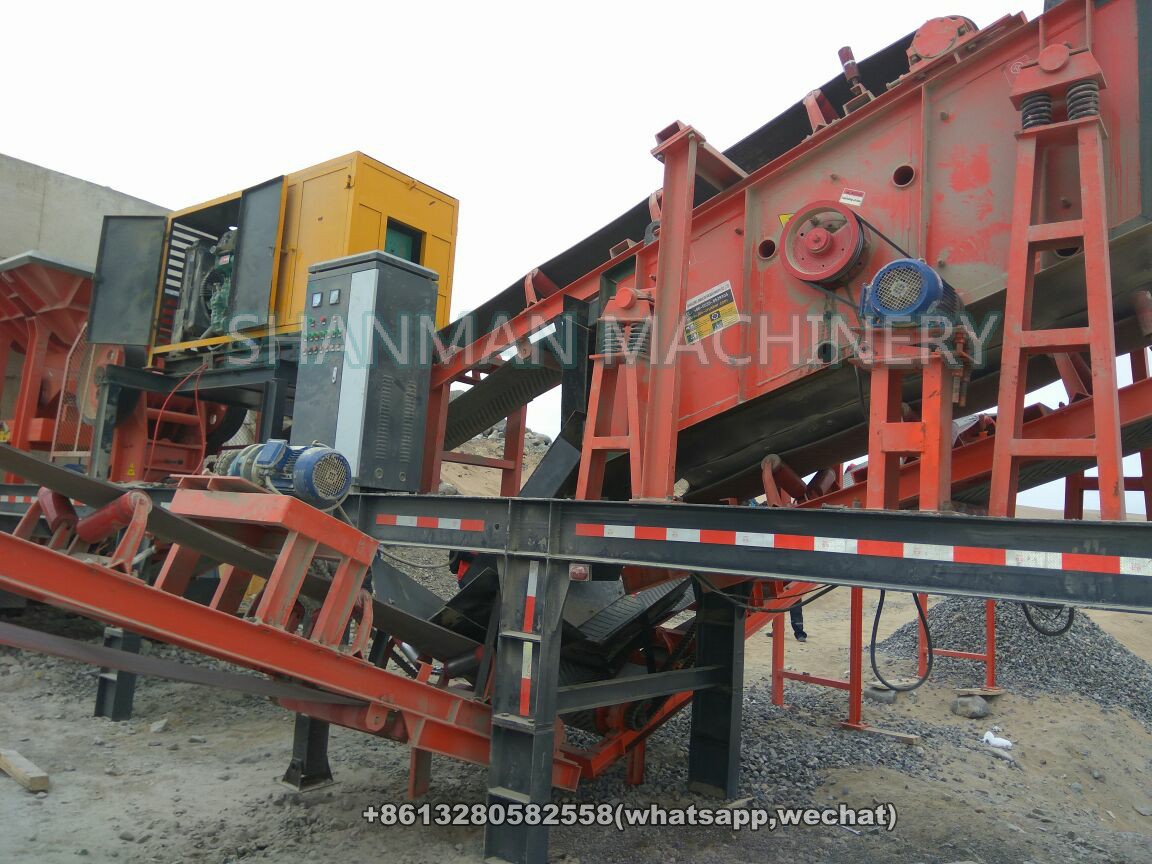

amazing mini mobile stone crushing and screening machine

The big stone broken into small stones in the process, the first line of crusher is usually the "primary" crusher. The longest history, also is the most strong crusher jaw crusher. Jaw crusher for feeding, material from the top entry into the crushing chamber containing jaw teeth and jaw teeth with great force will be material to the room wall, will break into smaller stones. Support jaw teeth movement is an eccentric, the eccentric shaft through the fuselage structure. Eccentric motion is usually produced by fixed on both sides of the flywheel. Often use flywheel and eccentric support bearings are of spherical roller bearings, bearing working environment is very harsh. Bearings must withstand the huge impact load, and high temperature abrasion sewage. Although the work environment is very harsh, jaw crusher still need to work very reliable, it is the key to guarantee the production efficiency.
