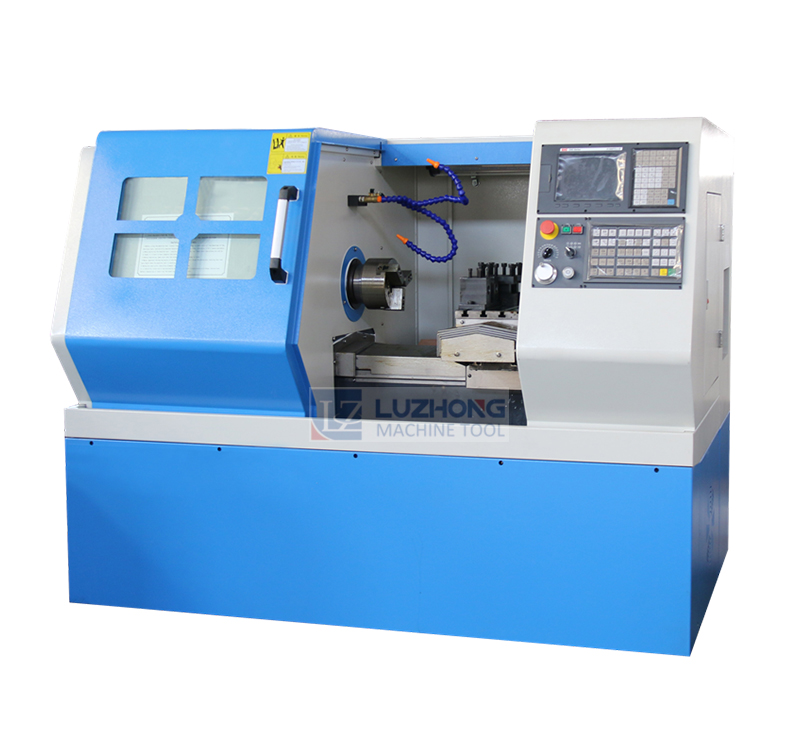

Flat Bed CNC Lathe Machine

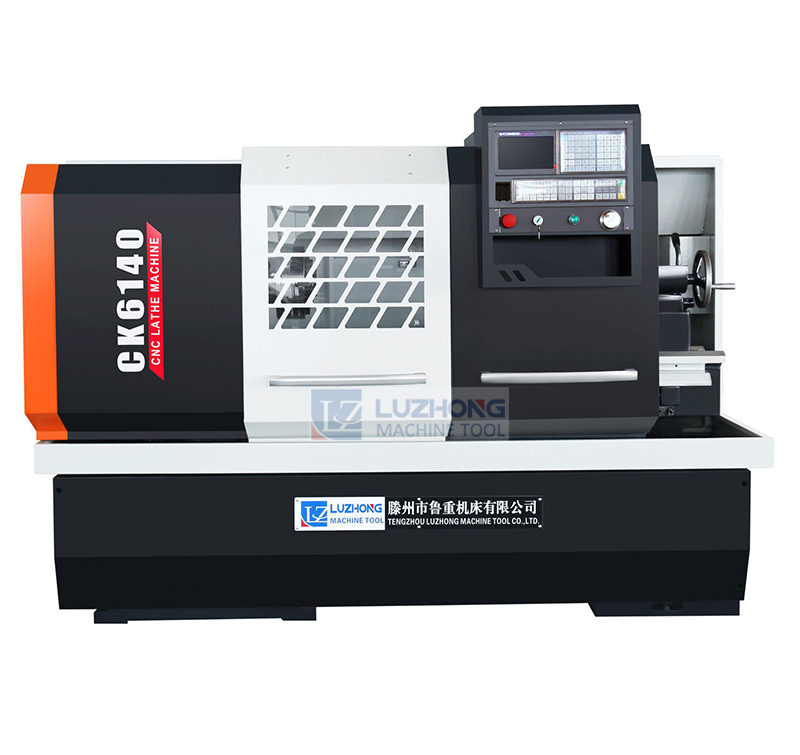

CNC Lathe Machine

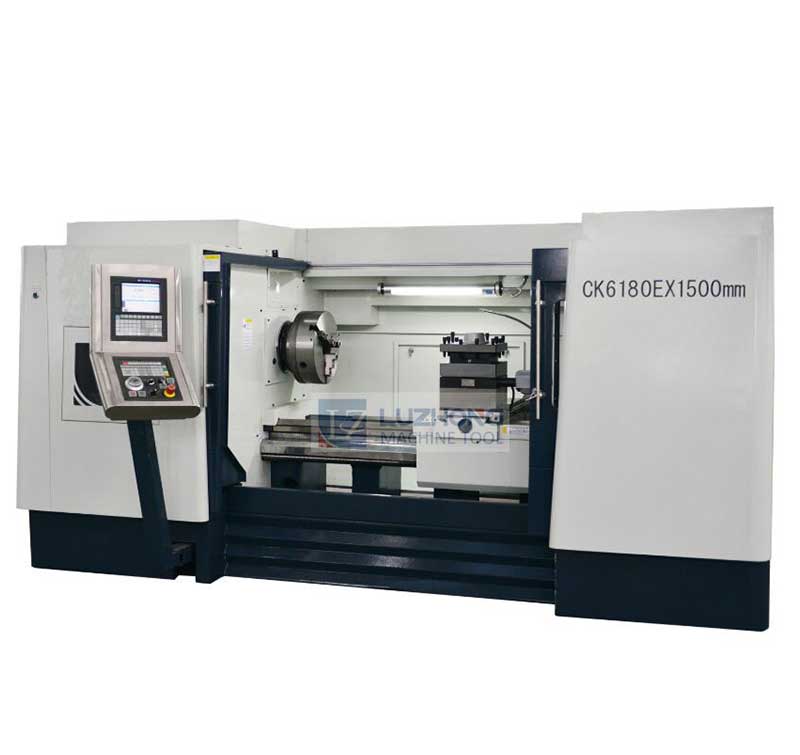

Heavy Duty CNC Lathe Machine

Product description：

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.

2.The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

Product main technical Specifications:

ITEM	Specifications	UNITS	CQK6140
Capacity	Max.Swing over bed	mm	Φ400
	Max.swing over cross slide	mm	Φ220
	Maximum length of workpiece	mm	750/1000/1500/2000
Spindle	Spindle hole	mm	52mm(82mm)
	Spindle nose		ISO-C6(C8)
	Spindle tap		MT6
	Spindle speeds(Number)	rpm	Low：100-500High:500-180Optional:90-1800
Feed	Z-axis stroke	mm	750/1000/1500/2000
	X-axis stroke	mm	330
	rapid moving speed（m/min）	m/min	3/6
	X/Z min input（mm）	mm	0.001
Tailstock	Dia. Of tailstock sleeve	mm	75
	Taper of tailstock sleeve		MT5
	Travel of tailstock sleeve	Mm	140
Carriage	Tool number		4(6)
	Tool body size	mm	20*20
	Knife tool change time	s	2
Position accuracy	Repeat positioning accuracy	mm	0.01
Power	Main motor power	K.W	5.5/7.5
Machine size(LWH)	Overall dismensions for 750mm	Mm	220015001600
	Overall dismensions for 1000mm	Mm	245015001600
	Overall dismensions for 1500mm	Mm	295015001600
	Overall dismensions for 2000mm	Mm	345015001600
Weight	Weight for 750mm	kg	1800
	Weight for 1000mm	Kg	1900
	Weight for 1500mm	Kg	2100
	Weight for 2000mm	kg	2300
