Virgin Coconut Oil Centrifuge Separator

FOB Reference Price / Min.Order Quantity : Get Latest Prices

Processing Time:1 Days - 60 Days

Packaging Details: STANDARD EXPORTING PACKAGE

Port: Shanghai / Shenzhen / Qingdao / Ningbo / Other

Payment Terms: L/C , T/T , other

Virgin Coconut Oil Centrifuge Separator is widely used for Virgin Coconut Oil extraction.

And the centrifuge is used for liquid-liquid-solid separation and liquid-liquid separation.

Tubular centrifuge

Industrial centrifuge

High capacity centrifuge

Super centrifuge

Centrifuge with CE ISO

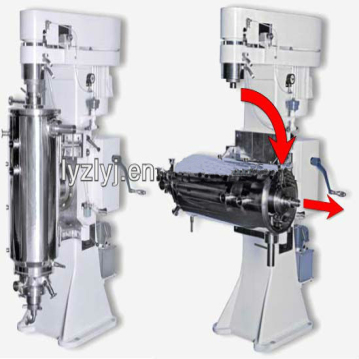

Our High-speed Tubular Bowl Centrifuge is widely used in a variety of biological processes from cell

harvesting and clarifying to separations of chemicals, foods, blood and pharmaceuticals.

The centrifuge is characterized by their ability to process many times the volume of their tubular bowl.

Fluid mixtures are fed into the bottom of the rapidly rotating separating chamber of the centrifuge.Solids

are retained, while liquid components are expelled from the top of the chamber through a collection tray.

For liquid-liquid separations, two collection trays are used. The retained solids cake is dry and densely

packed by the high G-forces of the High-speed Tubular Bowl Centrifuge.

The most difficult separation tasks can often involve three phases, with hardly any difference in the density

of the separate liquid phases and with the particles to be separated very small in size. In such applications,

no other technology can compete with High-speed Tubular Bowl Centrifuge technology.

The optimum size centrifuge for a given application depends on the volume and properties

of the process liquid. Typical process volumes specified for each centrifuge are approximate.

Tubular Bowl Centrifuge operate at high speed, generating up to 20,000 gravities of centrifugal force,

causing solids to collect inside the smooth bore of the stainless steel tube where they are easily recovered.

Tubular Centrifuges are an excellent replacement for many traditional filter and membrane applications due

to their high efficiency (virtually no product loss) and small footprint.

Items		Models
		45		75			105			125		150
Inner Diameter (mm)	45		75		105			125			147
The Effective Height(mm)	240		450		730			730			730
Volume (L)	0.4		2.2		6			8			10
Speed of Rotation(r/min)	30000		21000		19000			17500			16000
Separation Factor(ω2.r/g )	28500		22500		21000			21000			21000
The Diameter of Chewing (mm)		2;2.5;3		3;4;6			4;6;8;10			5,7,9		8;10;12
The pressure of passing materials(Mpa)		≥0.05
Through Output Capacity (L/h)		267		670		1700			2200			3200
Motor Power(kw)		0.4		1.5		2.2			3.0			3.0
Dimensions(L×W×H) (mm)		760×420×500		1120×450×760		840×500×1600			900×550×1600			900×550×1600
The weight		90		300		570			610			665
