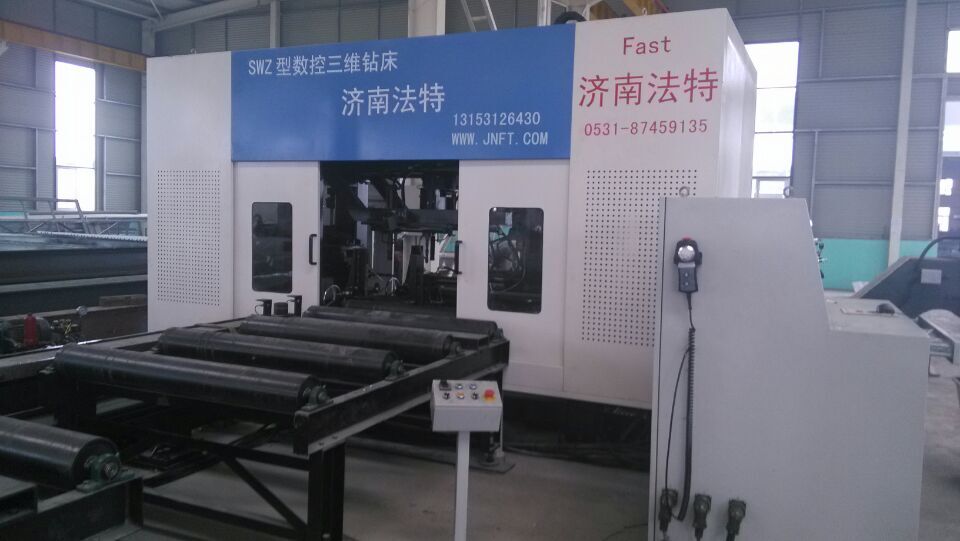

CNC Beam Drilling Machine, CNC Machine for Steel Structure, H-Beam Drilling Machine, Beam Drilling Machine
APPLICABLE INDUSTRY:
This machine is used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
ADVANTAGES:
There are 3 independent drilling units, one vertical and two horizontal (right and left).
3 drilling heads can drill holes simultaneously. Also, the drilling head is self-controlled stroke.
As long as inputting dimensions of workpiece, the processing program can be memorized, selected, displayed and transmitted according to wokpiece at will.
CNC and PLC systems, CRT displaying. Programming Microsoft is based on Windows. Programming Microsoft can be in any computer to run programing off-site. It directly by copy/internet transfer to equipment.
The feeding of the workpiec is driven by rollers, which are controlled by hydraulic and mechanical systems. The measuring wheel measures the actual feeding distance of workpiece and feeds back the result to control system to guarantee the precision the longitude position of holes,
Drilling heads are equipped with main shaft reducer.
★ All of these models can be customized according to customer requirements.
|
Model
|
SWZ700-3
|
SWZ1000-3
|
SWZ1200-3
|
|
H-beam Max. Web Height*Max. Flange Width (mm)
|
700*400
|
1000*500
|
1200*600
|
|
H-beam Min. Web Height*Min. Flange Width (mm)
|
150*100
|
150*120
|
180*150
|
|
Automatic Feeding Length (mm)
|
3000~~12000
|
3000~14000
|
|
Max. Web Thickness (mm)
|
≤40
|
≤50
|
≤60
|
|
Max. Weight of Workpiece (kg)
|
4000
|
8000
|
15000
|
|
Max. Drilling Diameter (mm)
|
Φ40
|
|
Feeding Speed (mm/min)
|
20~200
|
|
NO. of Spindle
|
3
|
|
Rotation Range of Each Spindle (r/min)
|
100~700
|
|
No. of CNC Axis
|
4
|
|
Upper Spindle Movement Range (mm)
|
40~660
|
40~960
|
40~1160
|
|
Left and Right Spindle movement range (mm)
|
30~370
|
30~470
|
30~570
|
|
Total Power (kW)
|
28
|
30
|
31
|
|
Overall Dimension L*W*H (mm)
|
29000*4220*3120
|
33000*4000*3000
|
33000*4400*3100
|
★ All of these models can be customized according to customer requirements.
Hot Sale cnc machine for drilling, punching, milling, shearing, sawing, bending, roll forming, hole processing. The Machine is used for Plate, Angle, Flange, Connection Boards.
For more product information, please click here.
