Resin trap’s instruction :
The resin trap is used to capture the resin particles in the water. Online processing the resin , If the resin strength is not high or the resin vessel is broken ,The resin will enter into the system and affect the equipment operation .Installing the resin trap and avoid the resin enter into the system . When the resin passes the resin trap ,it could be captured . Meantime ,Using the inlet outlet differential pressure automatic flushing to clean the resin trap .

Nominal pressure: 0.6MPa 1.0MPa 1.6MPa 2.5MPa 4.0MPa
Working pressure: over 0.2Mpa, less than 4.0Mpa
Type: Stainless Steel Resin Trap
Pressure loss: 0.01-0.03Mpa

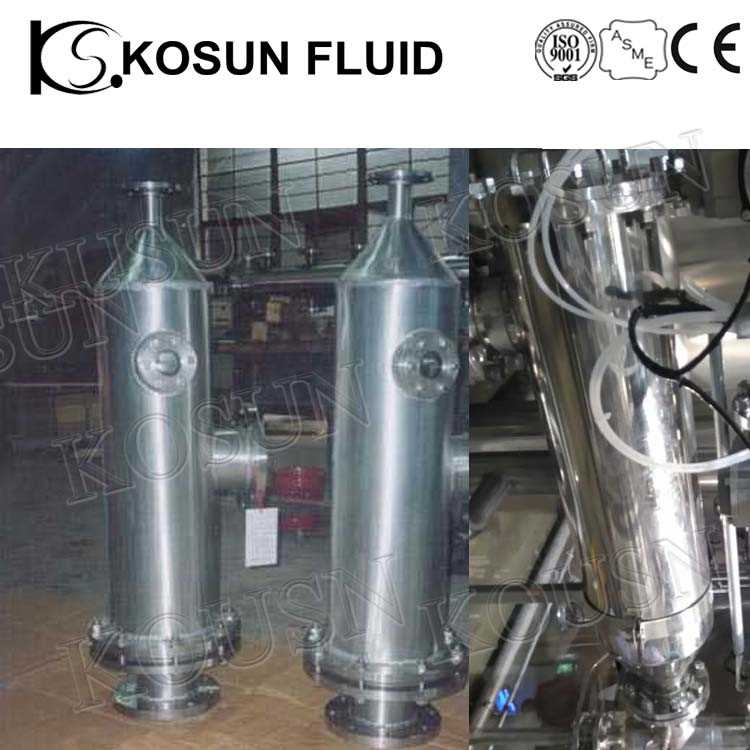

The resin trap has vertical and horizontal type .
1.Vertical resin trap inner has one or multi round wedge wire (slotted tube) according to the different flow rate to design
2.Horizontal resin trap inner has one or multi round wedge wire (slotted tube) according to the different flow rate to design

Advantages of the stainless steel resin trap
1.Filter element is the stainless wedge wire ,which can capture the resin particles effectively
2.The stainless wedge wire has a long operate life and it can be operate for back washing.
3.The stainless steel resin trap could be used for ion exchanger or activated carbon filter ,water treatment
4. It can withstand high corrosion situation with anti corrosion treatment for seawater or other situation
