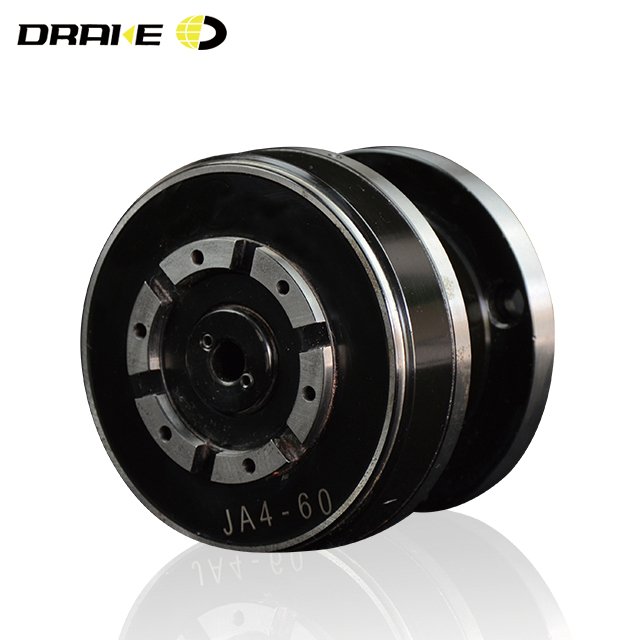

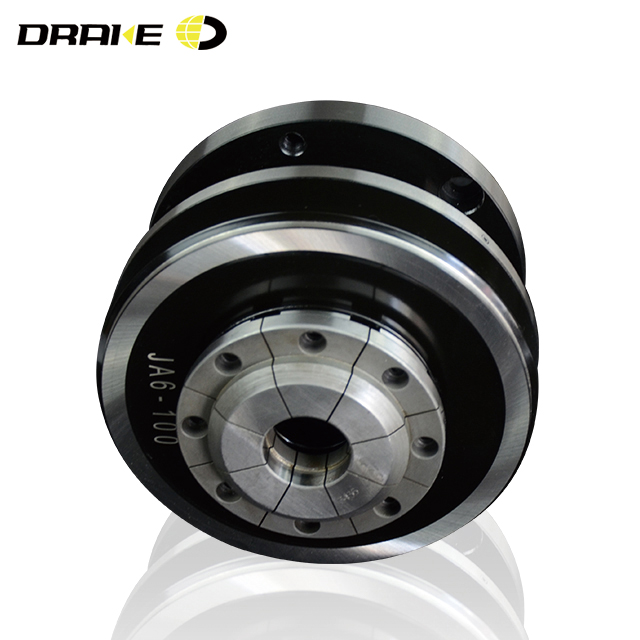

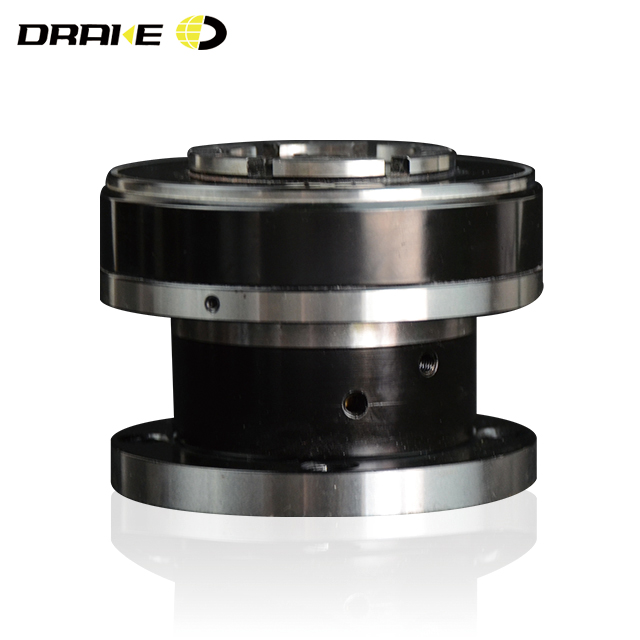

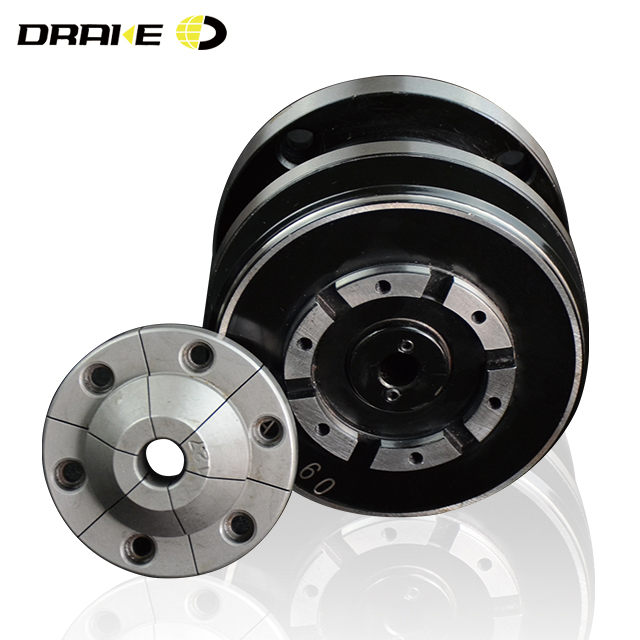

Air Diaphragm Chuck for sale

FOB Reference Price / Min.Order Quantity

USD 312.26-0.00 / Set/Sets | 1.00 Set/Sets (Min. Order)

Processing Time:7 Days

Packaging Details: 1.The inner is polyethylene of pneumatic Collet Chuck 2.The outside is packed in a paper case of pneumatic Collet Chuck 3.Wooden case of pneumatic Collet Chuck

Port: SHANGHAI, QINGDAO, NINGBO, TIANJIN, DALIAN etc.

Payment Terms: L/C , T/T , other

Product Details Company Profile

Feature of spindle collet chuck
1. Repeatability is within 0.001mm
2. Clamping precision is reached to 0.002mm
3. Pneumatic(air) cylinder is integrated: no cylinder or draw tube is needed.
4. Real front-mounting design allows easy installation and operation.
5. Complete through-hole is reserved. No limitation caused by a draw tube or an air feeder.
6. Highly-sealed chuck body helps protect cutting chips, dust or coolant fluid from entering,
100% waterproof and dustproof.
7. Gentle and precise clamping: suitable for fragile parts machining.
8. Low maintenance is required.
9. Oil-mist air lubricated. Very low temperature rising under high RPM.
10. Clamping force is proportional to input air pressure. Easy for adjusting.

Hope you can tell us following information:
1. Workpiece: outer diameter, Inner diameter, Iength, Material
2. Clamping precision, machining precision
3. Working RPM
4. Machining allowance
