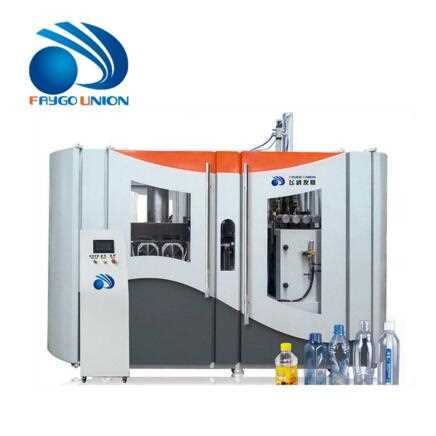

SMART series of blowing machine fills the gaps in field of domestic high-speed linear blowing machine currently.It has our own intellectual property rights, and has obtained more than 13 national patents. This machine is equipped with automatic perform loading and bottle unloading system. It is applicable for all shapes of drinking water bottles, carbonated bottles and hot filling bottles. FG4 is composed of three modules: preform elevator, preform unscrambler and host machine.

Main Features
FG4 is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design,small space occupation, less noise and high stability,meanwhile conforms to national beverage sanitary standards,This machine symbolizes the highest level of national linear blowing machines, It Is the ideal bottle making equipment for medium and large enterprises.

Technical parameters
Type		FG4	FG6	FG8
Bottle Specifications	Mould number(piece)	4	6	8
	Max capacity(BPH)	6500-7200	9000-10000	12000-13000
	maxi volume (mL)	2000	2000	2000
	maxi height (mm)	328	328	328
	maxi diameter (mm)	105	105	105
preform Specifications	Suitable inner bottle neck (mm)	20-25	20-25	20-25
	preform max length (mm)	150	150	150
Electricity	Total installation power (kw)	51	51	97
	Voltage / frequency (V / Hz)	380v,50hz	380v,50hz	380v,50hz
Air compressor	Pressure(bar)	30	30	30
	Capacity(m³/min)	4-6	4-6	4-6
Mold water	pressure(bar)	4-6	4-6	4-6
	Suitable temperature range (℃)	6-13	6-13	6-13
	Flow (L / min)	45	45	45
Oven water	pressure(bar)	4-6	4-6	4-6
	Suitable temperature range (℃)	6-13	6-13	6-13
	Flow (L / min)	22	22	22
Machine Specification	host machine dimension (m) (LxWxH)	3.3X1.2.3	4.3X1X2.3	4.8X1X2.3
	Weight (Kg)	3200	4000	4500
