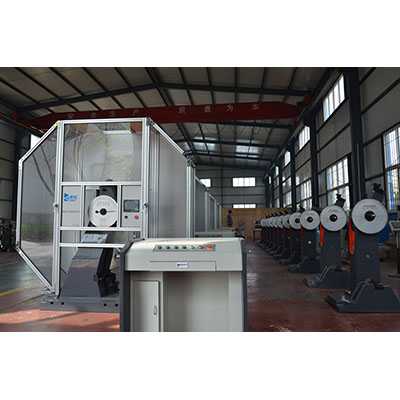

Microcomputer controlled automatic impact testing machine

The series impact testing machine is used to test the impact resistance performance of the metal materials under live load, being an indispensable testing instrument in metallurgy and machine manufacturing units and is also a necessary testing instrument for the research of new materials in research institutions.

1. PC controlled and PLC electric control, electric pendulum rising, impact, the results are measured ,calculated by microcomputers and displayed digitally, and can be printed out, having high operation efficiency and high testing accuracy

2.The energy which is remained after the specimen is impacted broken can automatically rise the pendulum for the next testing. easy to operate and has high working efficiency.

3 The load frame adopt double supports, integration bracket and base has good  rigidity,main frame adopt simple beam type support, hanging pendulum,bearing radial load is reasonable,main frme has less deformation.it has good rigidity,so the test data is accurate,especially suit to large energy testing, embody whose superiority

4.The absorb energy after impacting can be displayed by microcomputer ,text display  and dial, easy to read the value.you can read freely the value by any one method

5.The hanging pendulum adopt imported hydraulic buffer, not shake after hanging pendulum

6.Main shaft adopt high accuracy bearing, reduce the friction loss greatly, reduce the energy loss to the minimum

7.Round shape pendulum body designing, reduce energy loss caused wind greatly. Impact cutter is fixted by screw, reliable and easy to replace.

8.With recycling installation after impacting, you can reset acceptability limit, separate and recycle the specimen

9.With fully closed safety net, which has open-close door protect function to ensure operator safety

Model	JBW-300C	JBW-450C	JBW-600C	JBW-750C
Impact energy	300J	450J	600I	750J
Pre-angle of pendulum	150°
The distance between shaft and impact point	750mm	750mm	750mm	750mm
Impact speed	5.24m/s	5.24m/s	5.24m/s	5.24m/s
Specimen bearing span	40+0.2mm
Round angle of anvil	R1-1.5mm
Round angle of impact cutting edge	R2-2.5mm; R8mm
Angle resolving capacity	0.1°
Specimen size	10（7.5、5、2.5）mm×10×55mm
centering type	Manual operation
Power supply	380V/50Hz/5A

JINAN KEHUI TESTING INSTRUMENT CO.,LTD.

Basic Information

Business Type:Business Service

Main Products:Universal Testing Machine;Impact Testing Machine;Fatigue Testing Machine;Cupping Testing Machine;

Location:NO 6288 WEST JINGSHI ROAD, JINAN, SHANDONG, CHINA

Total Employees: 70

Year Established: 2000

Trade Information

Top 3 Markets:

Accepted Payment Currency:

Nearest Port:

Average Lead Time:

Overseas Office: No

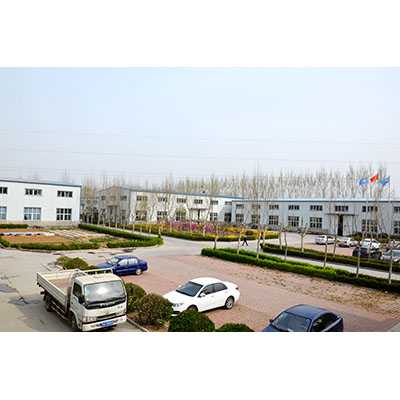

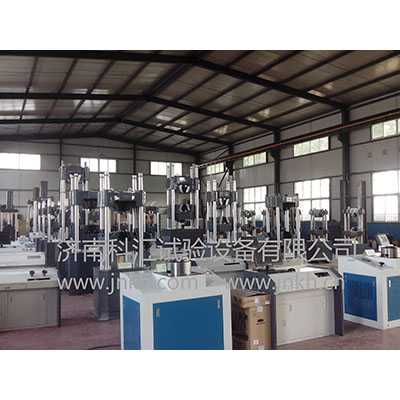

Company Pictures
