Technical specification of Cheap CNC vertical lathe machine for sale C5126

1 Table diameter 2300mm

2 Maximum turning diameter 2600mm

3 Maximum Height of workpiece 1300mm

4 Maximum Weight of workpiece 10t

5 Speed range of table 2.5-80r/min

6 Working table Step of rotation speed 16

7 Range of feed rates 0.8-86 mm/min

8 Step 12

9 horizontal travel of vertical slide 1600 mm

Vertical travel of vertical slide 915 mm

10 Horizontal travel of side tool post 750 mm

Vertical travel of side tool post 900 mm

11 Crossrail travel 850 mm

12 Maximum size of tool bar section 35×45 mm

13 Power of main motor 37 kw

Rotating Speed 1470 r/min

14 Power of feed motor 1.3/1.7 kw

Rotating Speed 940/1440 r/min

15 Machine weight(Approx) 19.5 t

16 Overall dimensions(L ×W×H) 3450x3430x4100 mm

Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd

Basic Information

Business Type:

Main Products:lathe machine,CNC lathe,vertical lathe,horizontal lathe,milling machine,boring machine

Location:

Total Employees: 300

Year Established:

Trade Information

Top 3 Markets:

Accepted Payment Currency:

Nearest Port:

Average Lead Time:

Overseas Office: No

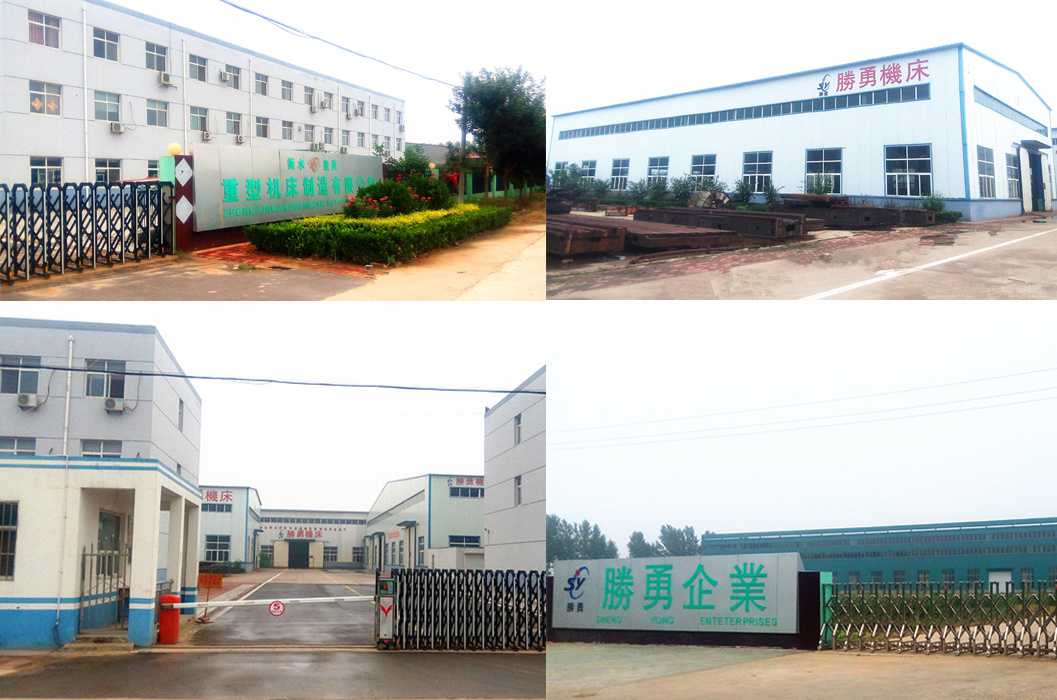

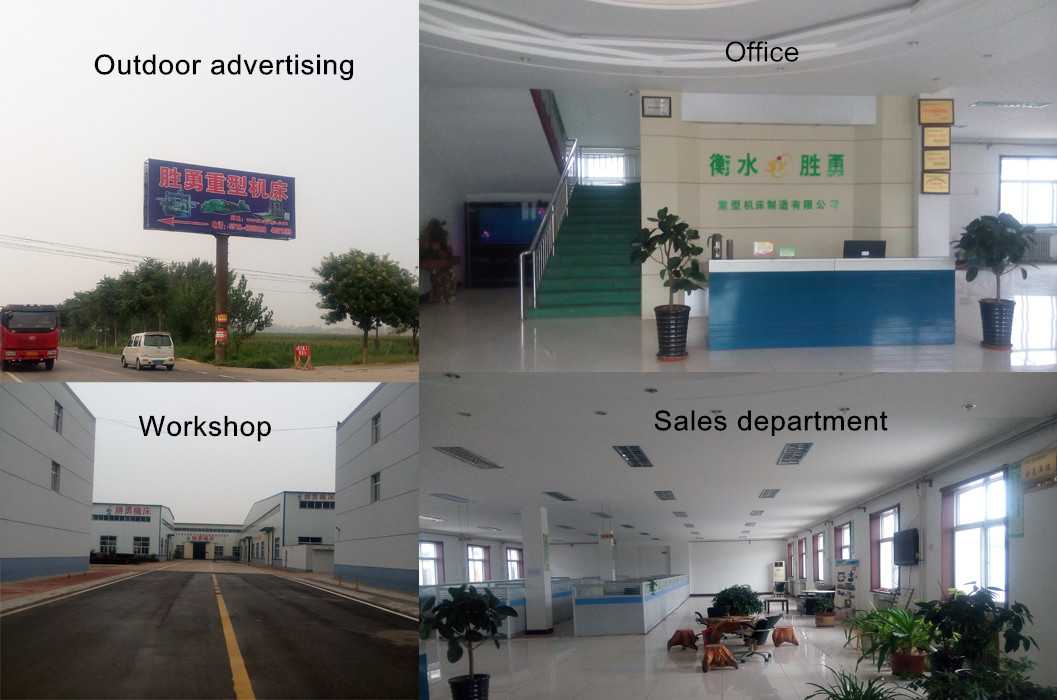

Company Pictures
