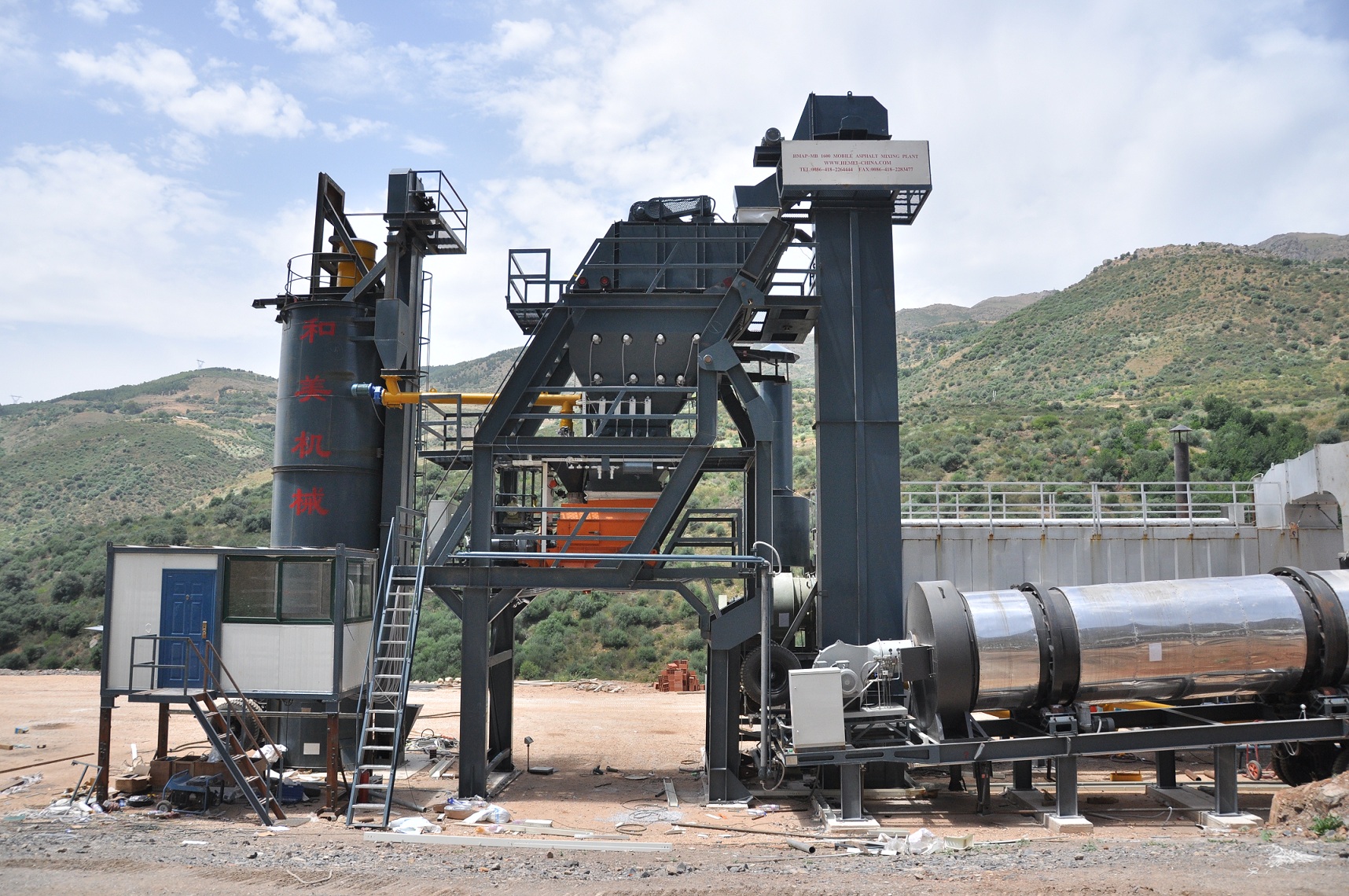

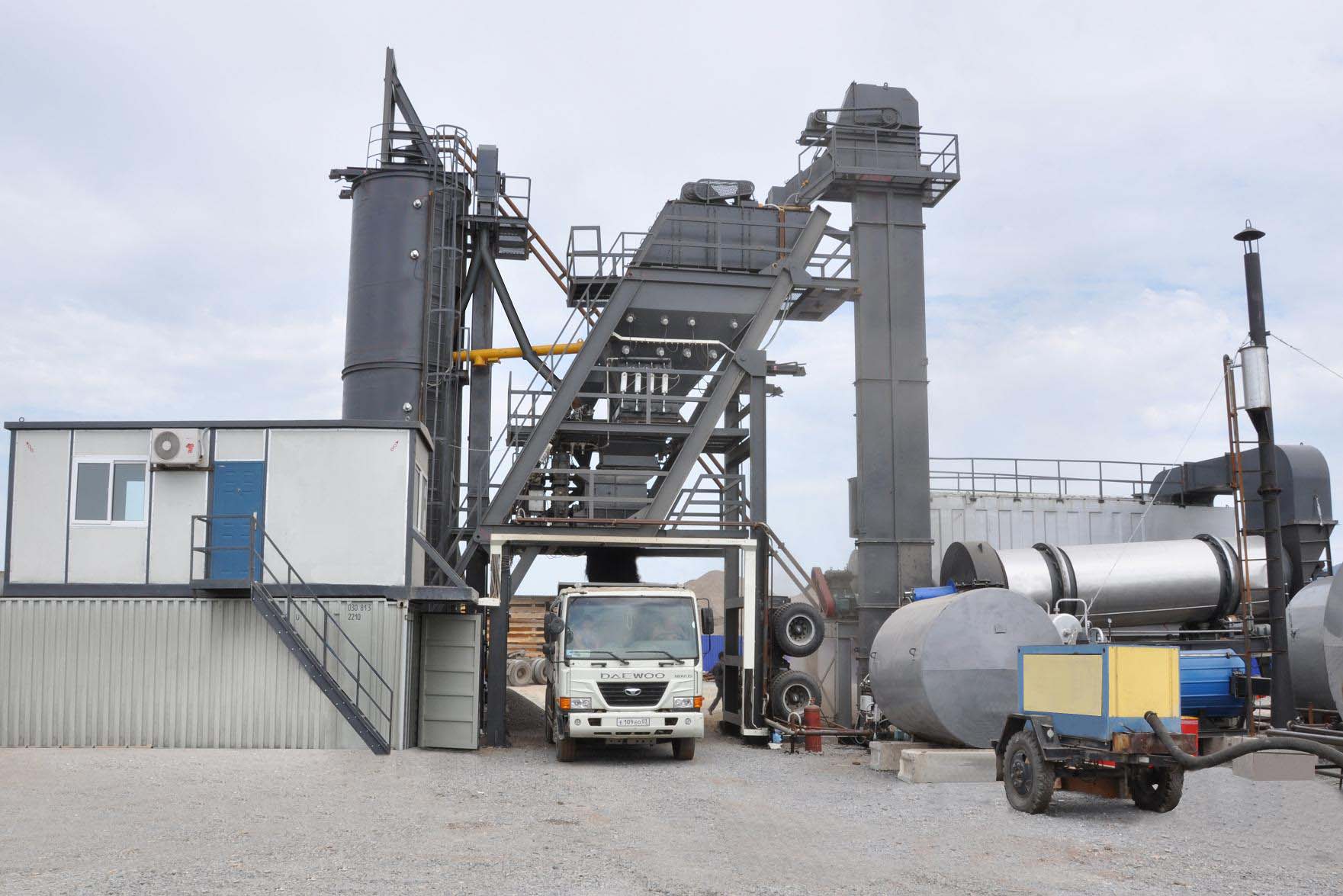

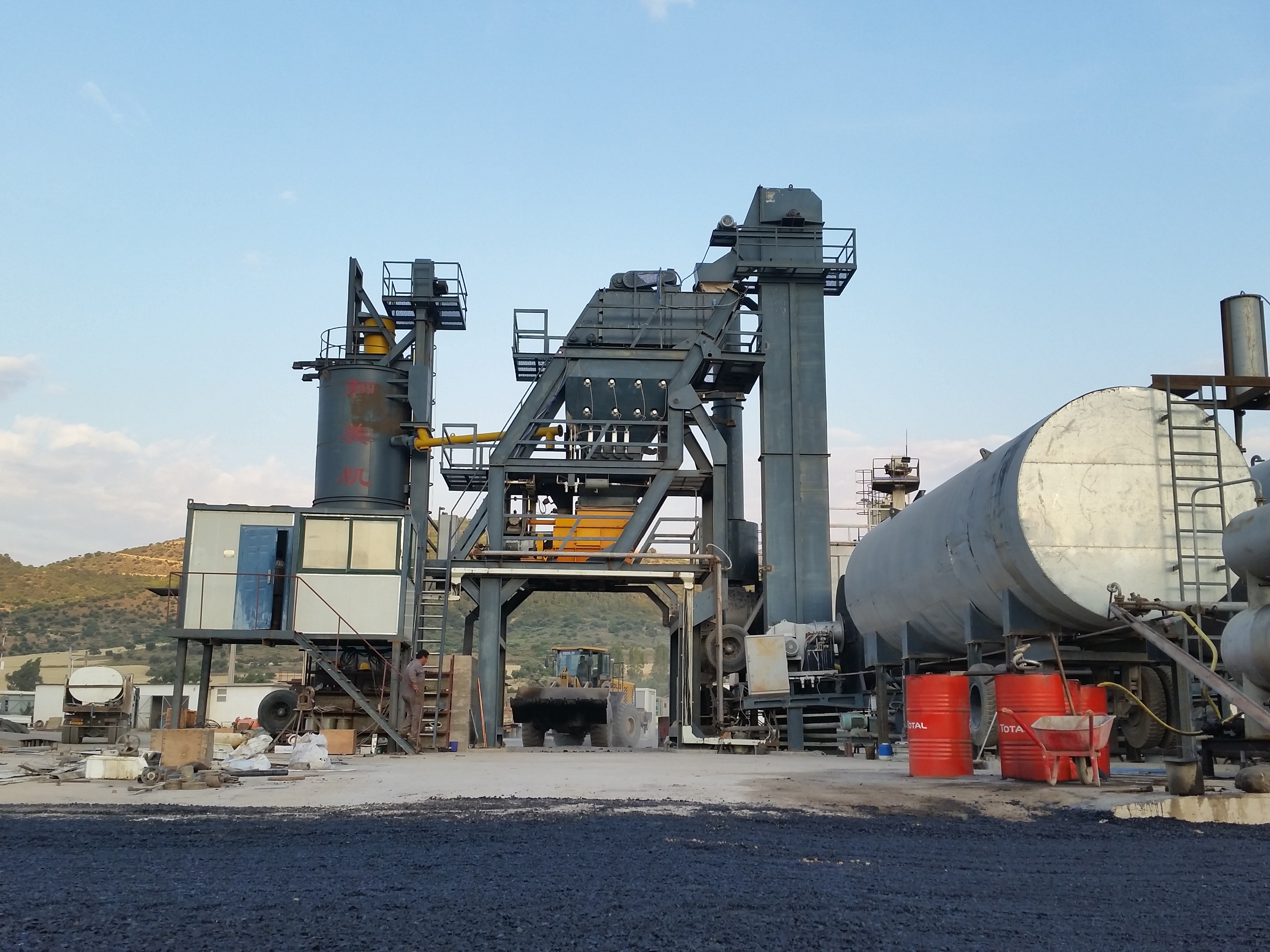

HMAP - MB series mobile asphalt mixing plant is my company use of advanced technology at home and abroad combined with mixing plant construction status of research and development of scientific and technological achievements. Complete set of equipment includes the main mixing body of mobile unit ,drying mobile unit, dust removal mobile unit and cold bin mobile unit and powder mobile unit, etc. Mixing main body uses unique tilting structure design, meet the production status from the switch to the mobile status, performance requirements, in order to ensure the production stretched tilting design, 500, 800, 1000 type, 1300 type and 1600 type  uses the design of curved body tilting from broke on structure design of the conventional design. This type of products are mainly oriented to the international market.,

型号MODEL			MB500	MB800	MB1000	MB1300	MB1600
生产能力CAPACITY			40Ton/Hr	64Ton/Hr	80Ton/Hr	104Ton/Hr	128Ton/Hr
拖车1            TRAILER 1	冷料仓                   COLD BIN	冷料斗Cold Bin	0.15Kw×2	0.15Kw×2	0.15Kw×2	0.15Kw×2	0.15Kw×2
		喂料皮带机Belt Feeder	1.5Kw×4	2.2Kw×4	2.2Kw×4	2.2Kw×4	2.2Kw×4
		水平皮带机Horizontal Belt Con'v	2.2Kw	3.0Kw	4.0Kw	4.0Kw	5.5Kw
		斜皮带机Slant Belt Con'v	2.2Kw	2.2Kw	2.2Kw	3.0Kw	3.0Kw
	尺寸 DIMENSION        MM(W)×MM(H)×MM(L)		2300×4000×12500	2300×4000×12500	2300×4000×12500	2300×4000×12500	2300×4000×12500
拖车2      TRAILER 2	搅拌主体            MAIN BODY	振动筛Screen	9.2kW	11kW	11kW	15Kw	15Kw
		热料仓Hot Bin	5m³	7.5m³	7.5m³	10m³	10m³
		骨料计量AGG Weighing	500Kg	800Kg	1000Kg	1300Kg	1600Kg
		粉料计量Filler  Weighing	100Kg	120Kg	150Kg	200Kg	250Kg
		沥青计量Asphalt Weighing	50Kg	80Kg	100Kg	130Kg	160Kg
		沥青喷射泵Asphalt Spray Pump	4.0Kw	5.5Kw	7.5Kw	7.5Kw	11Kw
		双卧轴搅拌机Twin Shalt MiXer	7.5Kw×2	11Kw×2	15Kw×2	18.5×2Kw	22Kw×2
	尺寸 DIMENSION        MM(W)×MM(H)×MM(L)		2700×4500×11500	2700×4500×11500	2700×4500×11800	3000×4500×12000	3000×4600×12000
拖车3       TRAILER 3	干燥滚筒        DRYER	干燥滚筒Dryer	3Kw×4	4Kw×4	5.5Kw×4	7.5Kw×4	11Kw×4
		燃烧器Burner	1.5Kw	1.5Kw	1.5Kw	1.5Kw	1.5Kw
		鼓风机Turbo Blower	18.5Kw	22Kw	22Kw	30Kw	30Kw
	尺寸 DIMENSION        MM(W)×MM(H)×MM(L)		2700×4100×11000	2700×4200×11500	3000×4300×11800	3000×4300×12000	3000×4300×12000
拖车4      TRAILER 4	布袋除尘器         BAG FILTER	螺旋输送机Dust Screw Con'v	2.2Kw×2	2.2Kw×2	2.2Kw×2	2.2Kw×2	2.2Kw×2
		布袋除尘器Bag Filter	165m²	240m²	285m²	355m²	455m²
		除尘器螺旋Inner Screw Con'v	3.7Kw	3.7Kw	3.7Kw	3.7Kw	3.7Kw
		引风机Exhaust Fan	30Kw	45Kw	55Kw	75Kw	45Kw×2
	尺寸 DIMENSION        MM(W)×MM(H)×MM(L)		2700×4500×9000	2700×4500×9000	2700×4500×10800	2700×4500×11500	2700×4500×12000
拖车5      TRAILER 5	粉料仓             FILLER SILO	粉料仓Filler Silo	30ton	30ton	30ton	30ton	30ton
		粉料斗提Filler Elevator	15ton/Hr  3.0Kw	15ton/Hr  3.0Kw	20ton/Hr  4.0Kw	20ton/Hr  4.0Kw	20ton/Hr  4.0Kw
		螺旋输送机Screw Con'v	2.2Kw	2.2Kw	2.2Kw	2.2Kw	2.2Kw
	尺寸 DIMENSION        MM(W)×MM(H)×MM(L)		2500×4100×10200	2500×4100×11200	2500×4200×10800	2700×4200×11500	2700×4200×12000
配套部件COMPONENTS	空压机Air Compressor		11Kw×2	11Kw×2	11Kw×3	11Kw×3	15Kw×3
	沥青计量泵Asphalt Feeding Pump		4.0Kw	5.5Kw	5.5Kw	7.5Kw	7.5Kw
	热料斗提Hot Elevator		4.0Kw	5.5Kw	7.5Kw	9.2Kw	11Kw
	导热油炉Hot Oil Heater Burner		300000KCAL	300000KCAL	300000KCAL	300000KCAL	600000KCAL
