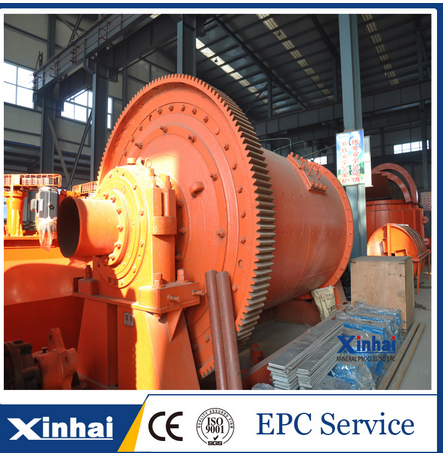

Ball Mill Specification — Parameter

Ball Mill Specification — Feature

1) The transmission machinery of grate ball mill substitutes large-scale double row self-aligning roller bearing for sliding bearing. It is easy to start and saves energy up to 20-30%

2) Adopt groove-type circular lining plate which is instrumental in increasing contact areas of iron balls and ores, and enhances grinding action and ore lifting capacity and decreases energy consumption.

3) Adopt overall frame, which makes it easy for construction and installation.

4) Large discharge opening, high capacity.

5) Equipped with oil-mist lubrication device which guarantees smooth operation of gears.

Ball Mill Specification — Application

It is essential and widely used for grinding coarse particles.

Ball Mill Specification — Principle

Materials are put in cylinder through the feed opening and then thoroughly grinded, because the falling course of iron balls and ores can produce huge falling impact and autogenous grinding. The continuous feeding of ores can create considerable pressure to make ores move from feed opening toward discharge opening. Finally, acceptable particles are discharged from the discharge opening. The discharge opening is equipped with a discharge grate, and the ore pulp horizon of discharge opening is low. These two factors prevent ores from being overly grinded, and iron balls from being dismissed.

Xinhai mining was established in 1993.Adhering to the core concept of technology achievement future and technology as the first productivity, Xinhai pays close attention to technological innovation, and has built 6 professional technology institutes invested heavily to purchase advanced instruments and professional equipment. Xinhai has been the company with the most complete facilities and powerful technology in the domestic processing enterprises..

these are our factory and our office.

Technical personnel is doing experiments

Xinhai mining is committed to providing customers with professional, perfect and efficient products and services.Xinhai has projects all over the word,Indonesia,Africa,Armenia,Inner Mongolia Hailai,etc.Including EPC Project and many equipment.

these are our proect and our customers

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company
